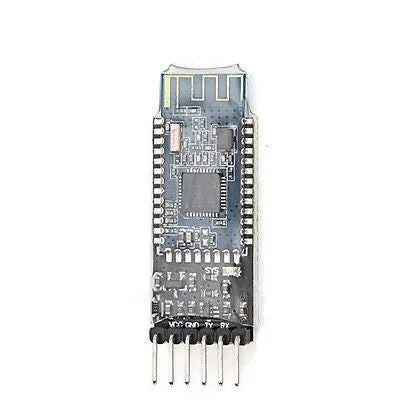

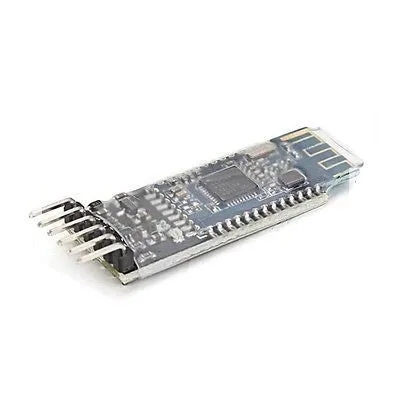

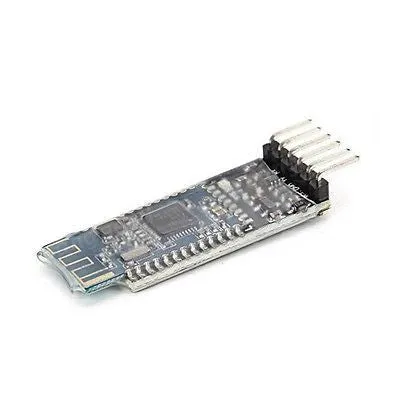

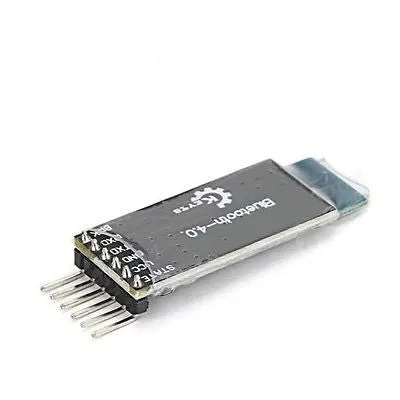

HM-10 BLE Bluetooth 4.0 CC2540 CC2541 Serial Wireless Module Arduino



Feature:

Internal with logic level conversion circuit. No need external 5V level to turn into a 3.3V level

The power input port with anti-anti-circuit. To avoid accidental power plug reversed, leading to the module burned

HM-10, HM-11 series Bluetooth module using TI CC2540 chip, configuration 256Kb space, support

AT commands, you can change the role (master and slave mode) and the baud rate, the device name,

Pairing password and other parameters, convenient and flexible.



Parameters:

Bluetooth protocol: Bluetooth Specification V4.0 BLE

USB Protocol: USB V2.0

Operating Frequency: 2.4GHz ISM band

Modulation: GFSK (Gaussian Frequency Shift Keying)

Transmit power: ≤4dBm

Sensitivity: ≤-84dBm at 0.1% BER

Transfer rate: Asynchronous: 6 kbps, Synchronous: 6 kbps

Security Features: Authentication and encryption

Support Services: Central & Peripheral UUID FFE0, FFE1

Power supply: 3.3VDC 50mA

Working temperature: -5 ~ 65 Centigrade

Dimensions: 27 x 13 x 2.2 mm.



Note:

Support Apple IOS5 /IOS6 system, please download the files before you buy it.

BT V4 module interfaces and microcontroller connection requires only four lines: 5V (VCC) GND TXD RXD



Application areas:

Industrial remote control, remote sensing

POS system, bluetooth keyboard, mouse, game controllers

Automobile testing equipment

Portable, battery power of medical equipment

Automated data collection

Bluetooth remote control toy

The wireless LED display system

Bluetooth printer

Intelligent household, industrial control



Package content: :

1 x HM-10 Bluetooth 4.0 Module





Raspberry Pi is a Trademark of the Raspberry Pi Foundation



Product ID: EP00269
