Optimize Your Solar Power System with the MPPT 60AMP Solar Charge Controller

Maximize the output of your solar panel and seamlessly connect 12V, 24V, 36V, or 48V batteries with the versatile MPPT 60AMP Solar Charge Controller. This intelligent DC to DC converter enhances efficiency by up to 30%, outperforming PWM controllers. Perfect for adjusting voltage and current to match the connected battery, it ensures optimal power utilization.

Features:

Intelligent maximum power point tracking technology
High-performance internal DSP controller
Automatic battery voltage detection (12V / 24V / 36V / 48V)
Three-stage charging optimizes battery performance

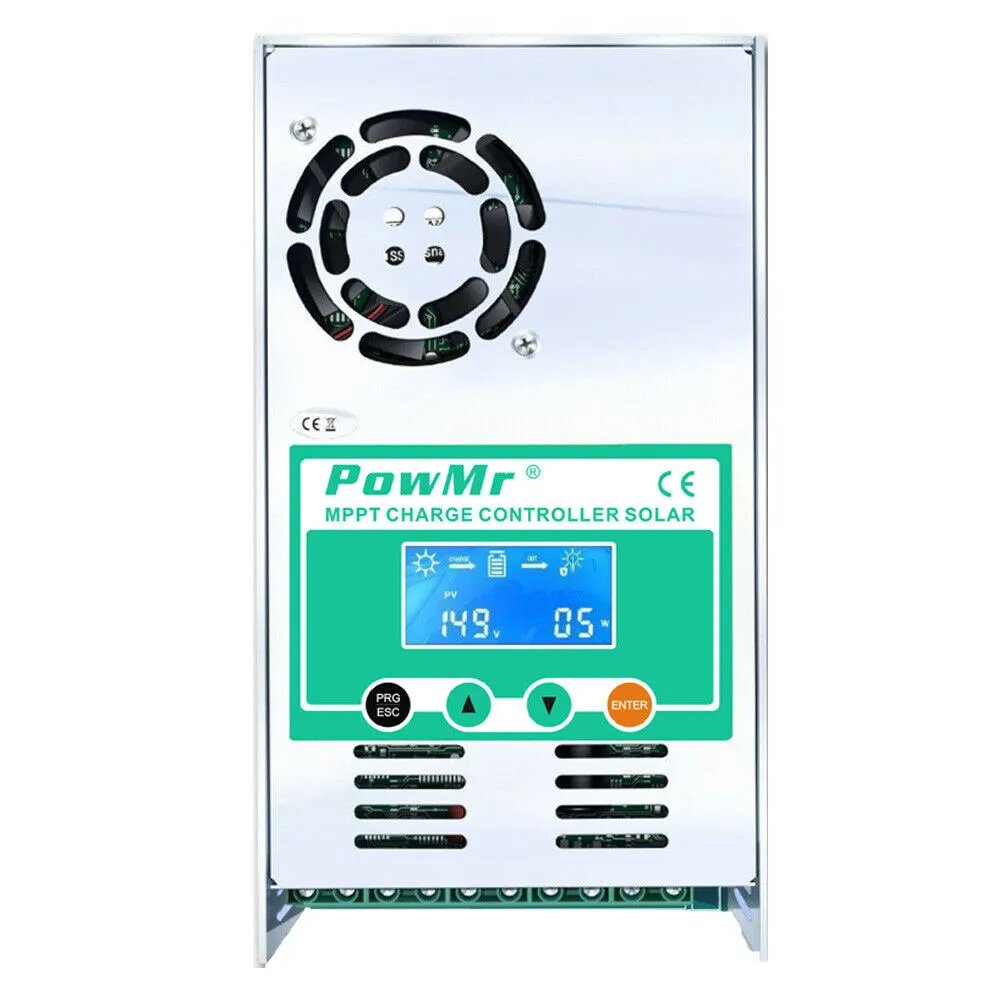

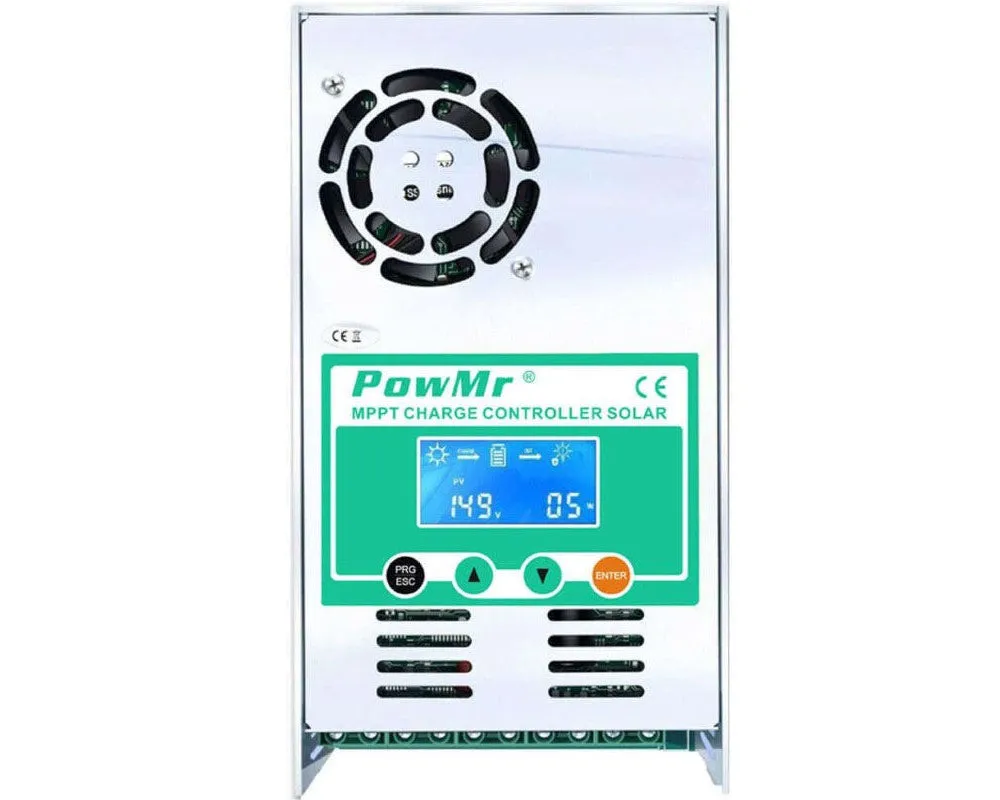

Multifunctional LCD screens for easy monitoring
Solar panel reverse polarity protection
Overcharge protection for battery longevity
Easy installation with lightweight and sleek aluminum alloy case
Built-in fan for efficient heat dissipation

Specifications:

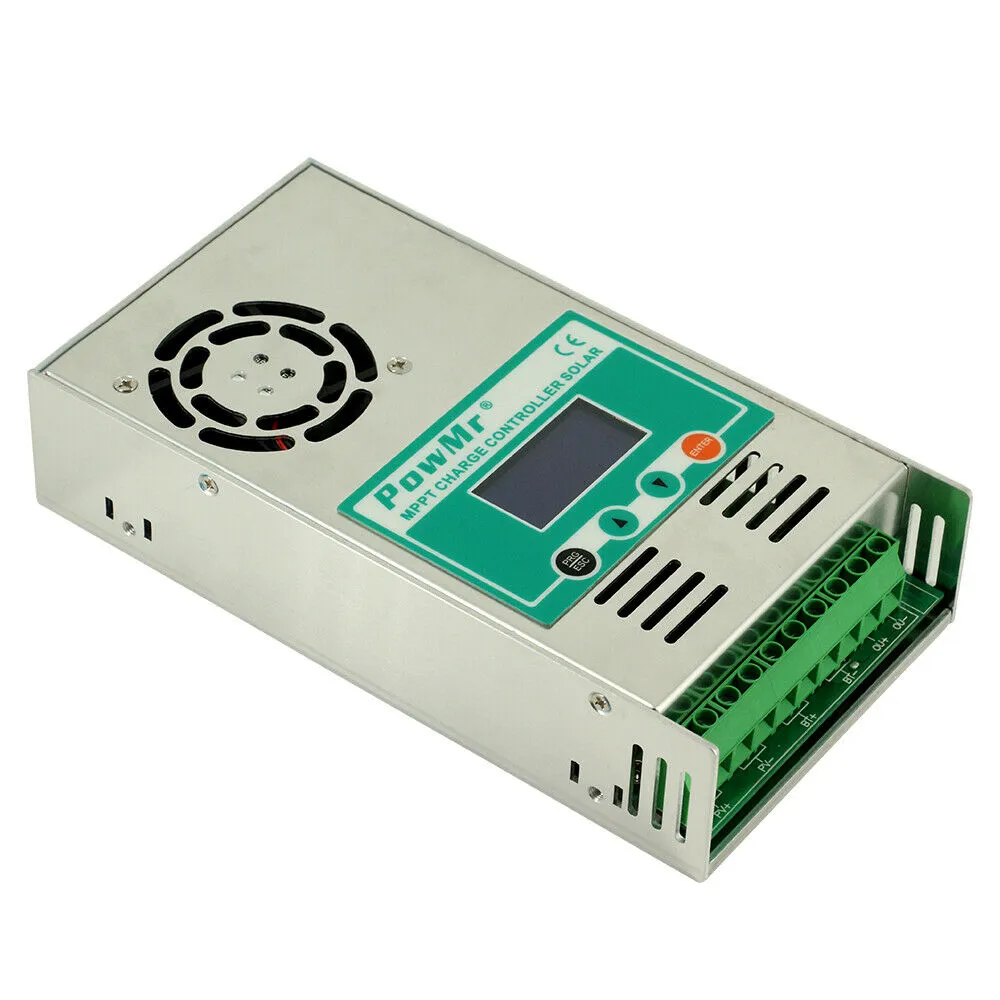

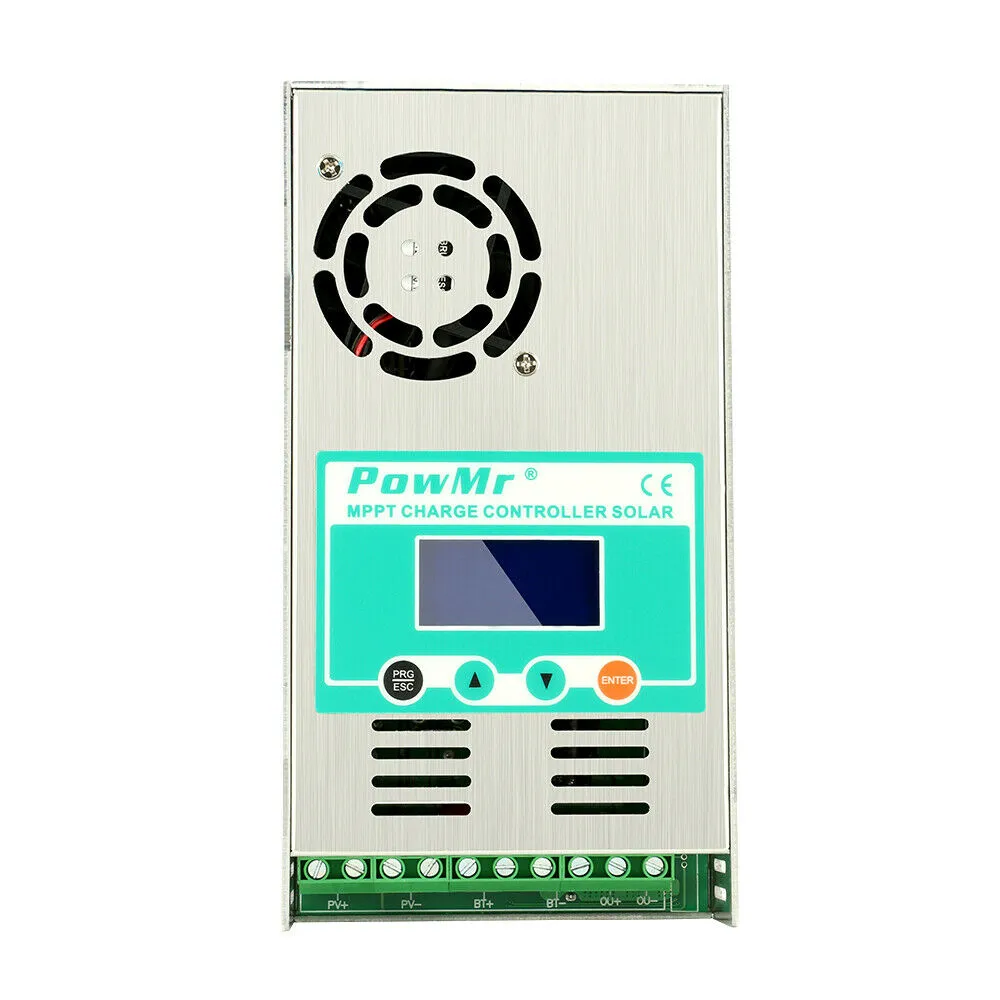

Product: MPPT Solar Charge Controller 60A
Cover Material: Aluminium Alloy
Charge: 3 stages - Constant Current (MPPT), Constant Voltage (suction voltage), Floating charge
System Type: DC12V / 24V / 36V / 48V Recognition Automatically
Soft Start Time: ≤ 1 S
Dynamic Response and Recovery Time: 100us
Overall Efficiency: ≥98.1%
Photovoltaic Module Utilization: ≥99%
Maximum Limit Input Voltage: DC190V
Net Weight: 1.1 Kg
Maximum PV Input Power:
- 12V system (720W)
- 24V system (1440W)
- 36V system (2100W)
- 48V system (2800W)

Package Includes:

1 x MPPT Solar Controller 60A
1 x Set Of Mounting Accessories
1 x User Manual

Upgrade your solar power system with the MPPT 60AMP Solar Charge Controller - the smart choice for efficient, adaptable, and reliable energy management.
