PRODUCT OVERVIEW:

ZKAccess systems are built on flexible, open technology to provide management, real-time monitoring, and control of your access control system- all from a web browser. Simply download one instance of our free Windows-based v5.3 software (on a customer’s computer or ZKAccess InBridge appliance) and then manage the software from any computer’s web-browser which has administrative rights.

C3-200’s versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable door controllers on the market, with a multitude of built-in features.

Be sure to inquire about ZKAccess options which can further reduce your C3 installation time and labor, including:

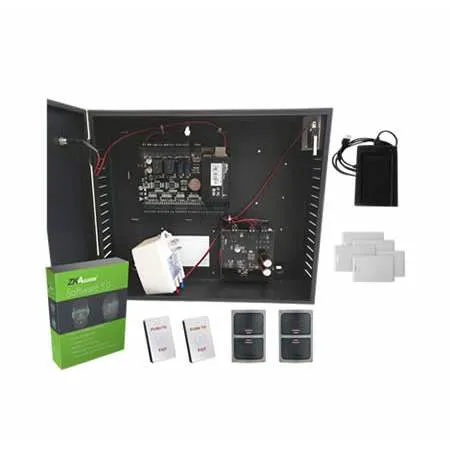

The kit includes:
1 C3-200 Pro Bundle (inc. door controller, power supply and metal enclosure)
1 Prox card enrollment reader
2 ProID prox card readers
2 REXs
50 Proximity cards

Be sure to inquire about ZKAccess options which can further reduce your C3 installation time and labor, including:

1) Power over Ethernet (12V 2A)
2) InBridge Server (Single-purpose management appliance with pre-loaded software)
3) Wireless Bridge (up to 300-foot range)

KEY FEATURES:

• Over-current & over-voltage protection and reversal protection for the power supply and all input/output terminals
• Supports Push protocol
• Reliable network system of controllers using either TCP/IP or RS-485 Serial communication
• Supports different Wiegand formats, and connects to ZK readers as well as HID, Mifare, and generic ID card readers
• Connects with a variety of electric locks, sensors, exit buttons, alarm devices, and indicators
• Can be integrated with 3rd party systems CCTV, Intrusion Detection, Fire Alarm and Elevator Control systems
• Easy-to-use and intuitive programming with ZKBioSecurity Software
• System management by browser from client PC’s. No need to install software on each client
• Programming of special logic between doors is set up with simple pull down menus. No special scripts required.
• Management software allows indication of real-time door status and remote commanding of door open/close state. Alarm conditions such as forced open and extended open alarms are reported.
• Advanced access control capabilities are built into the hardware, including anti-passback, Dual and multi-Card Authentication, and Duress Mode.
