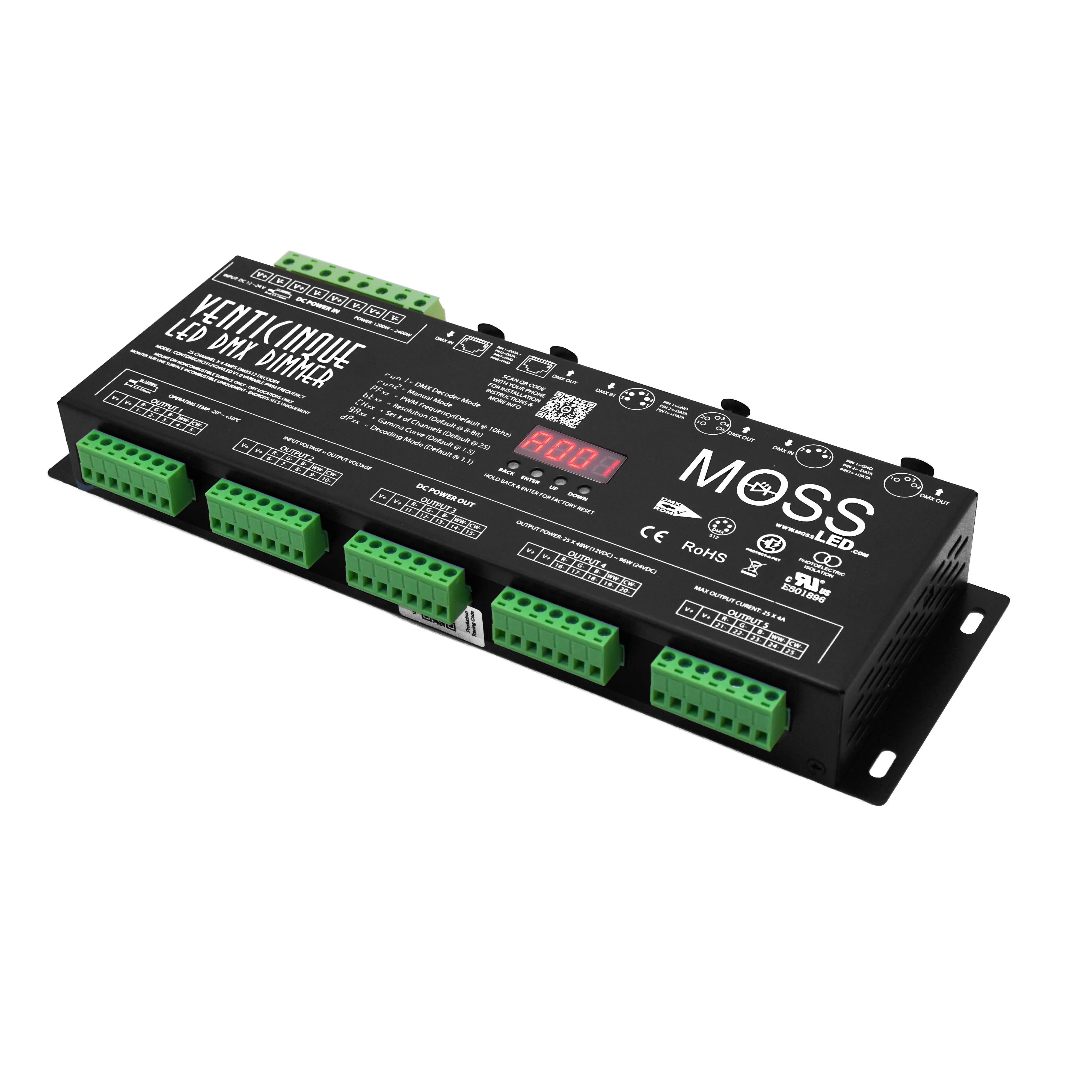

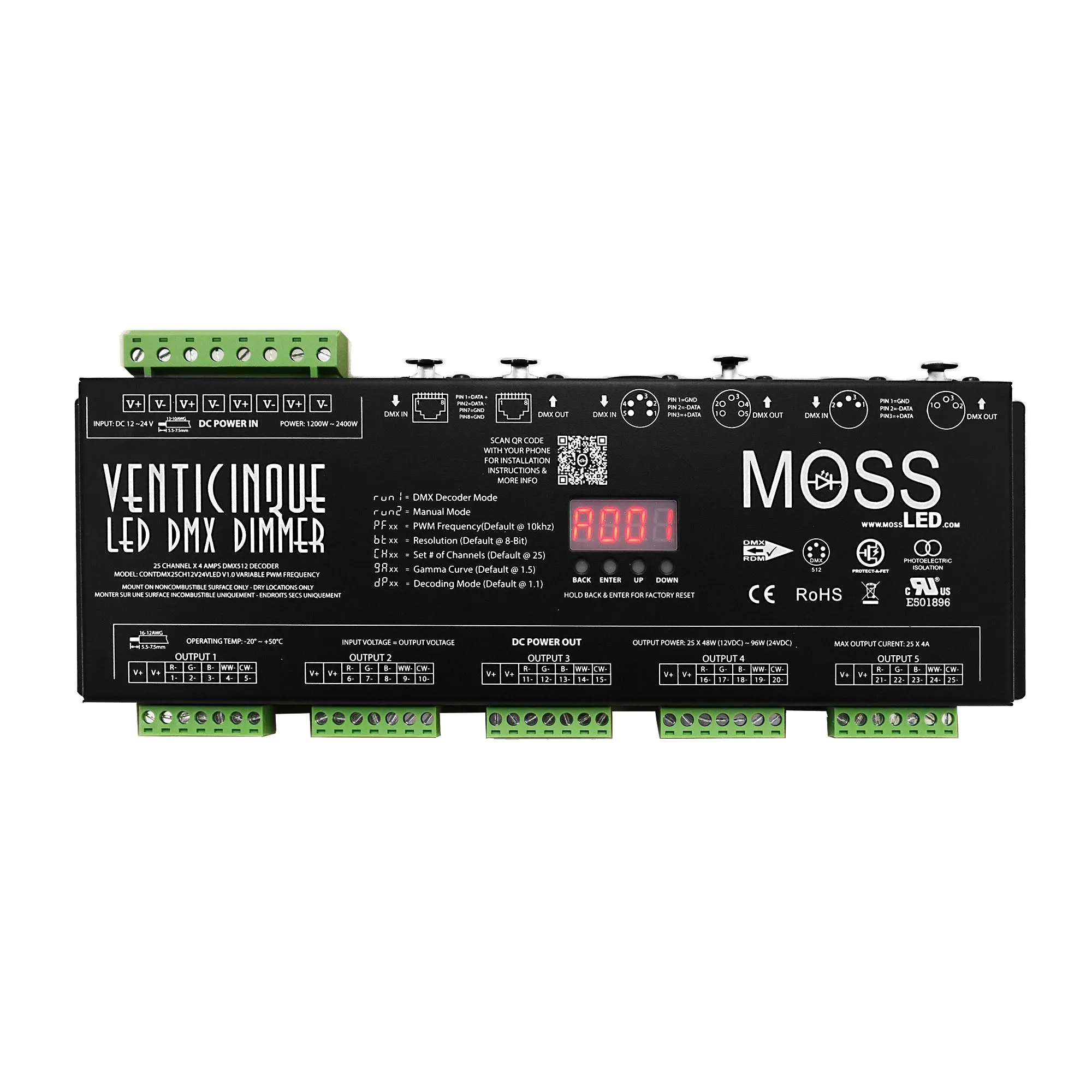

Our most advanced standalone DMX Dimmer Ever. The VentiCinque-LED DMX Dimmer is extremely feature-rich. Built with all the same features as our 5 channel Cinque, our 12 channel Dodici, and our 24 channel VentiQuattro plus more. Featuring a high current rating of 4A per channel, smooth dimming, adjustable PWM frequency, gamma curve, 8-bit and 16-bit options, full manual mode, RDM control, XLR5, XLR3 and RJ45 connections for DMX in and out plus our Protect-A-FET technology. Double common for high current output (over 10A per output)

• High-precision dimming from 0 - 100% with precise low-end dimming
• Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape
• Protect-A-FET technology on each output channel allowing for short individual channel circuit protection. Ensuring that if there is an accidental short on one of the outputs, a quick power cycle of the unit will allow for continued use and no internal damage will result.
• Protect-A-FET able to protect when powering loads with AWG18 or larger up to 10 meters away from the dimmer @ full power.
• Default PWM frequency set to 10KHZ allowing for out-of-the-box flicker-free performance. For non-standard camera settings, PWM frequency can be adjusted between 500hz and 35khz.
• Durable metal, rugged housing

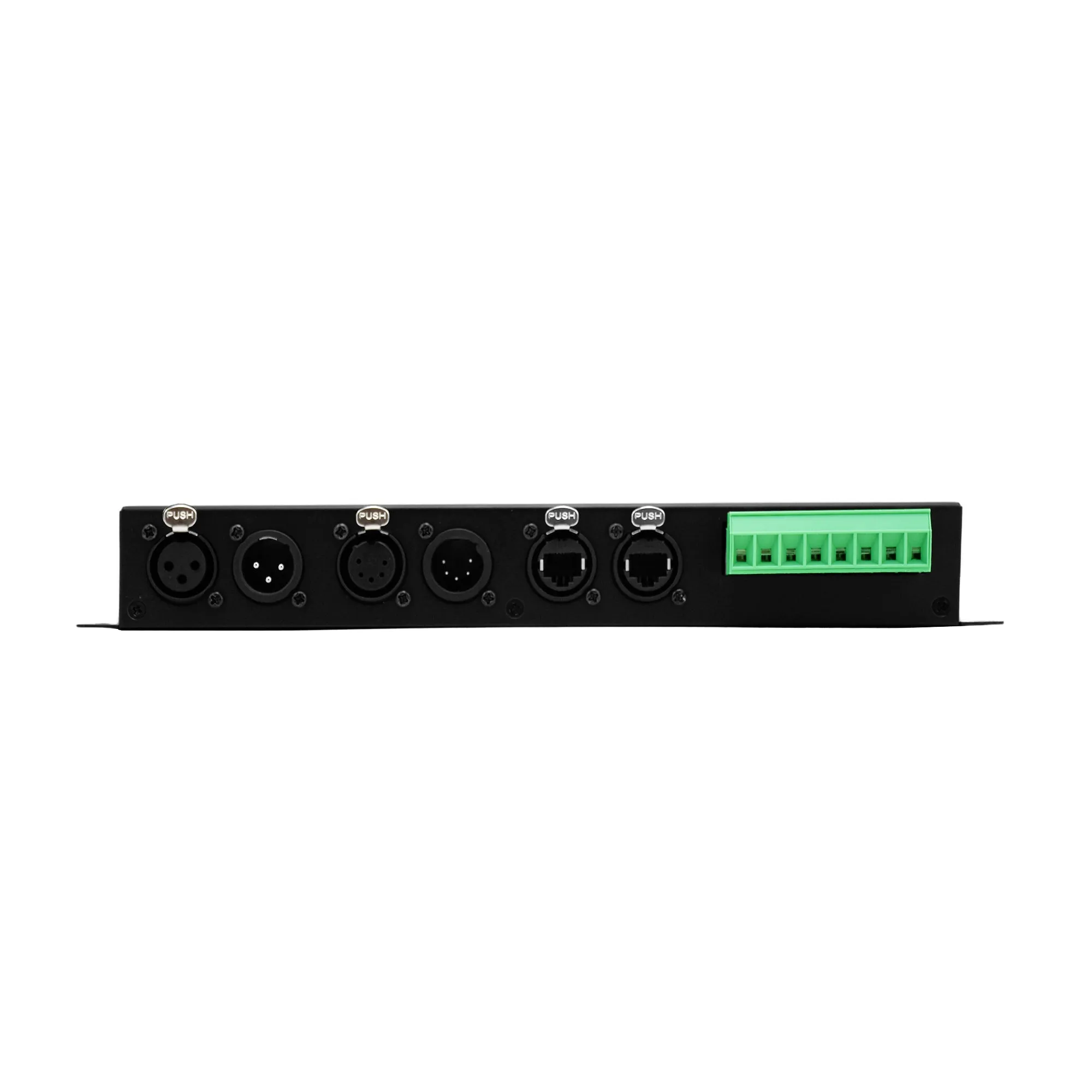

• DMX-512/1990 decoding via RJ45 / 5-Pin XLR / 3-Pin XLR
• 8-bit or16-bit DMX control
• 8-Position High-Current Input Terminal Block 100A Capacity
• Gamma curve adjustment
• Decoding mode allows for grouping of channels as well as master and strobe effects
• Easy-to-read display provides easy functionality for DMX addressing as well as full manual mode & test control options.
• RDM control allows for remote addressing, PWM adjustment, and gamma curve adjustment.

*Please Note - Due to Improved Hardware Design Changes, the VentiCinque Dimming Curve Will Not Match the Dimming Curve of the Cinque, Dodici, or Ventiquattro controllers in the 0 - 10% (low-end dimming) range. 10% - 100% will match*

Technical Specifications

DOWNLOADS

3. VentiCinque Installation Manual (pending)
4.  RoHS Certificate (pending)
5.  Output Terminal Block Specification (pending)
6. CE Certificate of Conformity (pending)
7.  EU Certificate of Conformity (pending)
