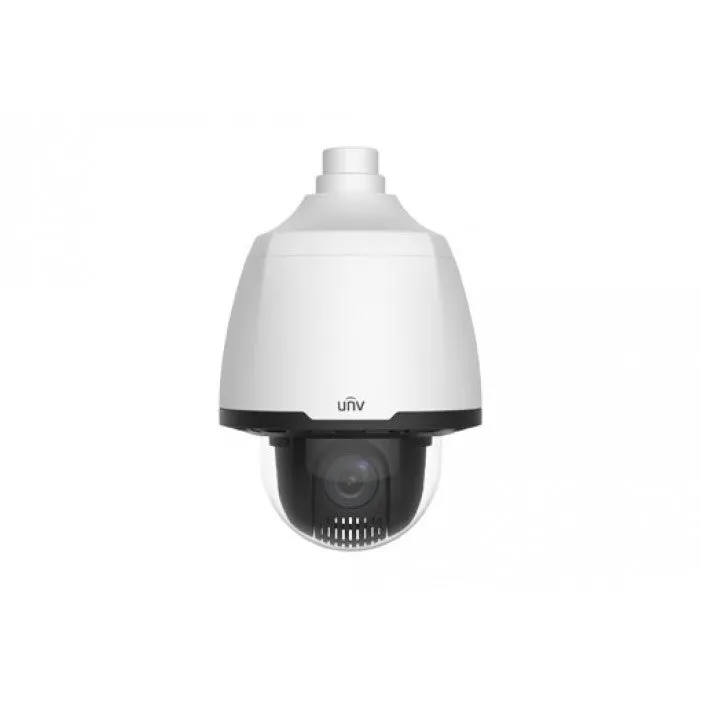

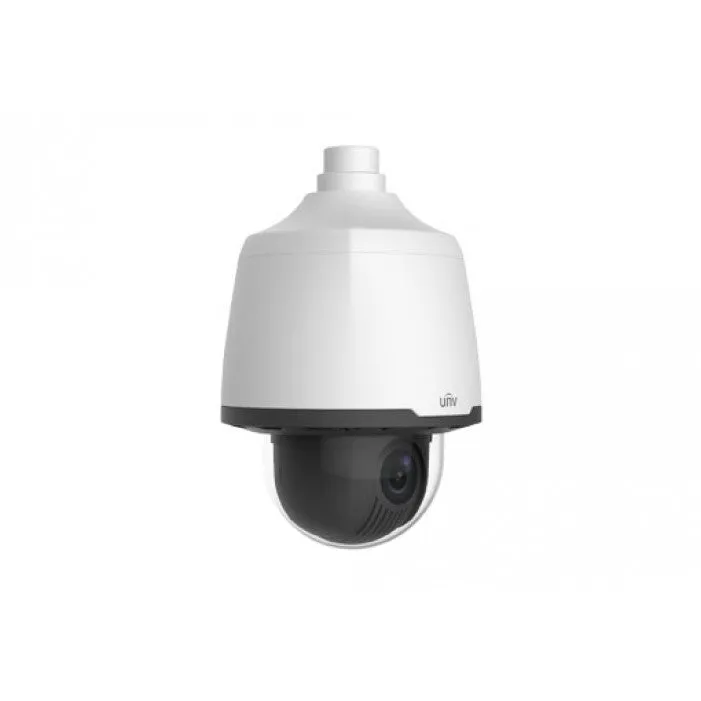

The IPC6634S-X33-VF from Uniview is a 4 megapixel lighthunter network PTZ dome camera with 33X lens.
Features
- High quality image with 4MP, 1/2.8’’ CMOS sensor
- 2688*1520@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- 33X Optical Zoom
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- AC 24V ±25%, DC 24V±25%, PoE (IEEE802.3 at)
- Alarm 7 in and 2 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
| Product SKU | IPC6634S-X33-VF |
|---|---|
| Brand | Uniview |
| Condition | New |
| NDAA Compliance | Yes |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| S/N Ratio | >56dB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Privacy Zone | 24 areas, up to 4 areas per scene |
| Power Consumption | Max 16W |
| OSD Menu | Up to 8 OSDs |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Minimum Scene Illumination | Colour: 0.003Lux (F1.5, AGC ON)BW: 0.001Lux (F1.5, AGC ON) |
| Lens Size | 33X |
| Camera Signal | Network IP |
| Lens Type | Motorized Zoom |
| Angle of View | (H): 53.0° ~ 2.3°, (V): 40.5° ~ 1.7°, (O): 65.2° ~ 2.7° |
| Digital Noise Reduction | 2D/3D DNR |
| Weatherproof | IP67 |
| Video Output | 1 BNC |
| Back Light Compensation | Support |
| Automatic White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Infrared Distance | Non Infrared |
| Resolution | 4 Megapixel |
| Voltage | 24vDC, 24vAC, PoE |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Connection Type | Wired |
| Image Device | 1/2.8", 4.0 megapixel, progressive scan, CMOS |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Dimensions (W x H) | Φ218 x 297mm (Φ8.6” x 11.7”) |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Pendant |
| Audio | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
