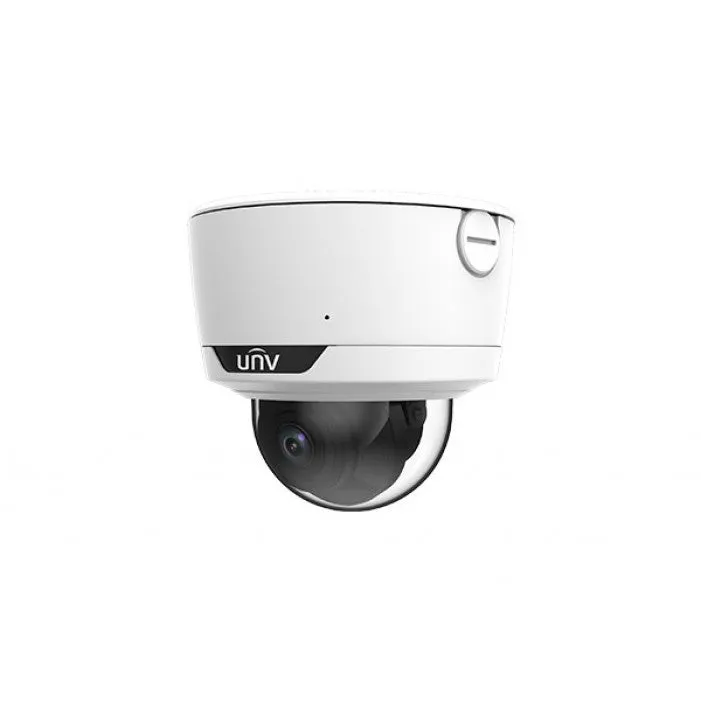

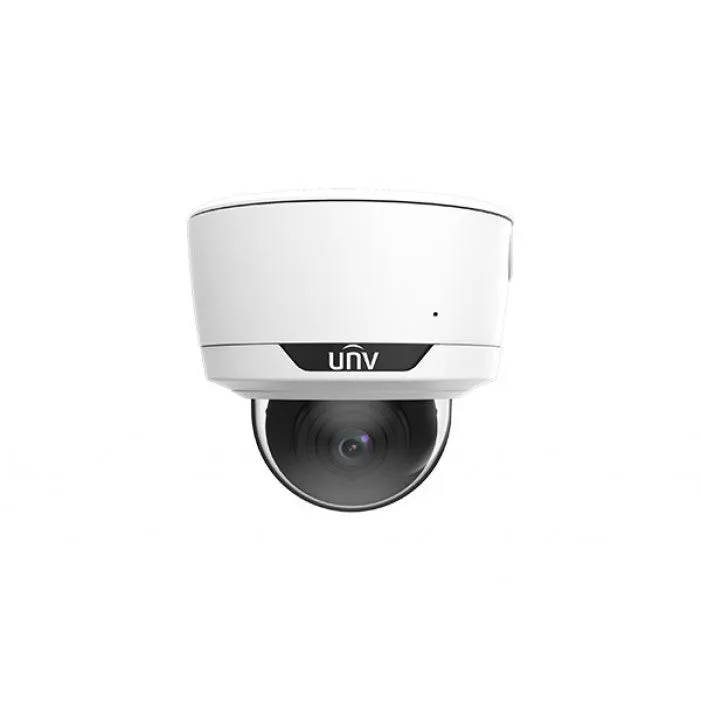

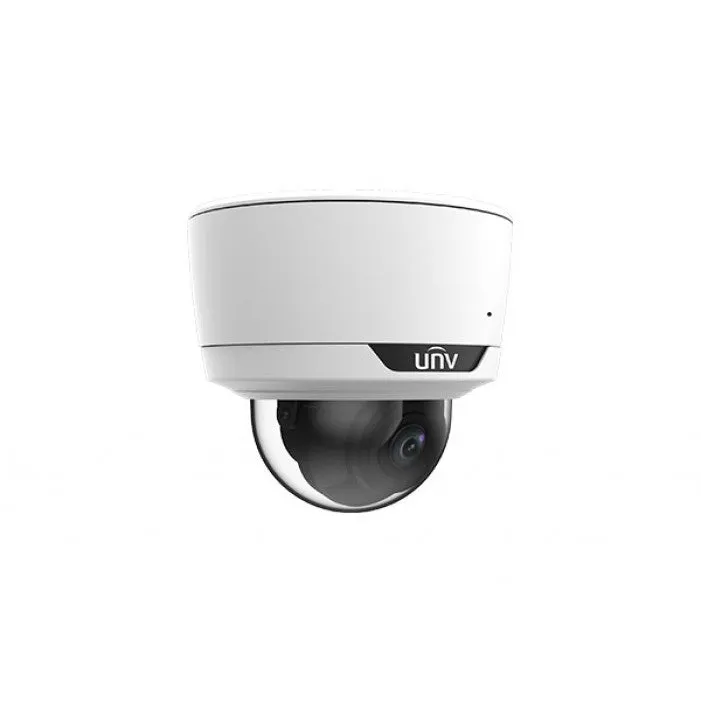

The IPC3734SE-ADZK-I0 from Uniview is a 4 megapixel lighthunter WDR IR network dome camera with 2.8-12mm lens.
Features
- High quality image with 4MP, 1/1.8’’ CMOS sensor
- 2688*1520@ 30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Built-in heater, support normal start-up at low temperature
- DC12V or PoE (IEEE 802.3af) power supply
- Wide voltage range of ±25% in DC
- Audio 1 in and 1 out, Alarm 2 in and 1 out
| Product SKU | IPC3734SE-ADZK-I0 |
|---|---|
| Brand | Uniview |
| Condition | New |
| NDAA Compliance | Yes |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| IR Distance | 40m/131ft |
| S/N Ratio | >56dB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Privacy Zone | Up to 4 areas per scene |
| Power Consumption | Max 10W |
| OSD Menu | Up to 8 OSDs |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Minimum Scene Illumination | Colour:0.0005 lux (F1.2, AGC ON)0 lux with IR |
| Lens Size | 2.8-12mm |
| Camera Signal | Network IP |
| Lens Type | Varifocal |
| Angle of View | (H): 42.6°~113.7°, (V): 24.1°~59.0°, (O): 4.12°~74.38° |
| Digital Noise Reduction | 2D/3D DNR |
| Weatherproof | IP67 |
| Video Output | 1 BNC |
| IR Wavelength | 850nm |
| Back Light Compensation | Support |
| Automatic White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Infrared Distance | 101 Feet |
| Resolution | 4 Megapixel |
| Voltage | 12vDC, PoE |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Connection Type | Wired |
| Image Device | 1/1.8", 4.0 megapixel, progressive scan, CMOS |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Dimensions (W x H) | Ø 162mm x 149mm(Φ6.4’’ x 5.9’’) |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Audio | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
