User Manual:
• Adopt a high precision capacitive touch IC

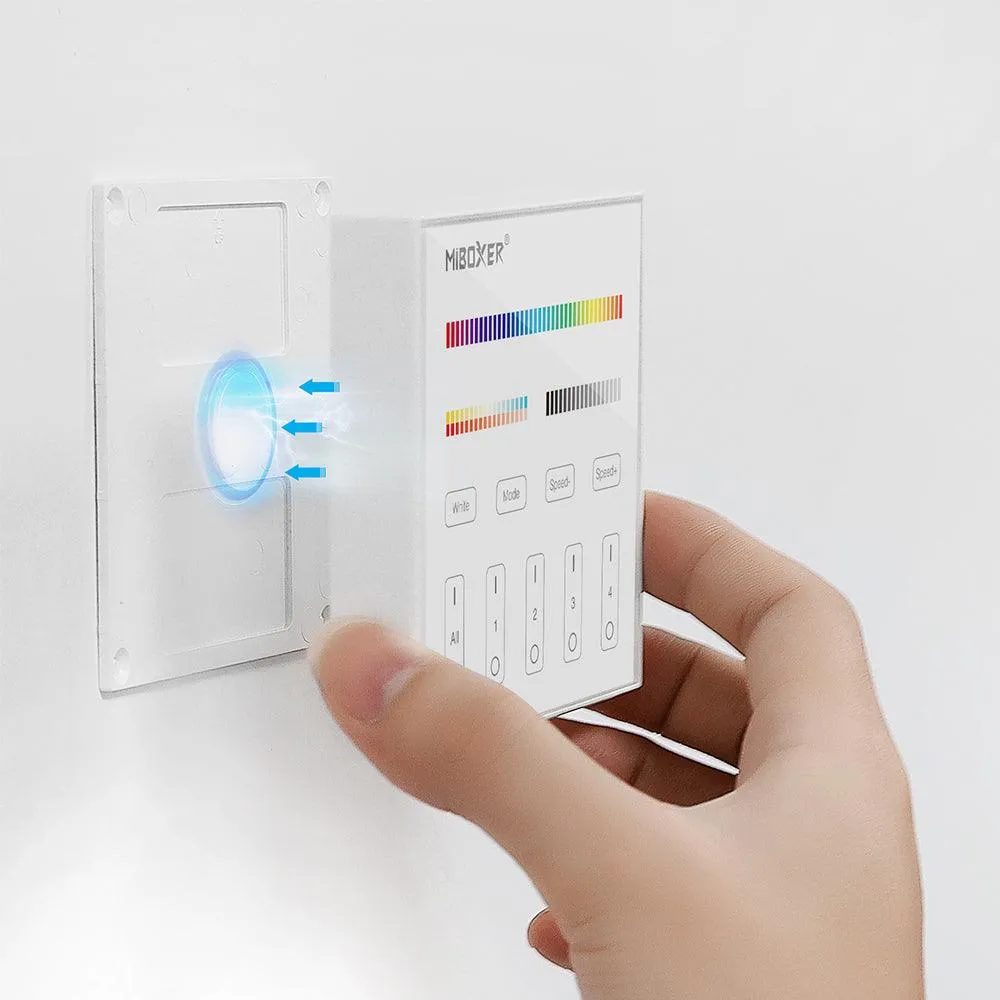

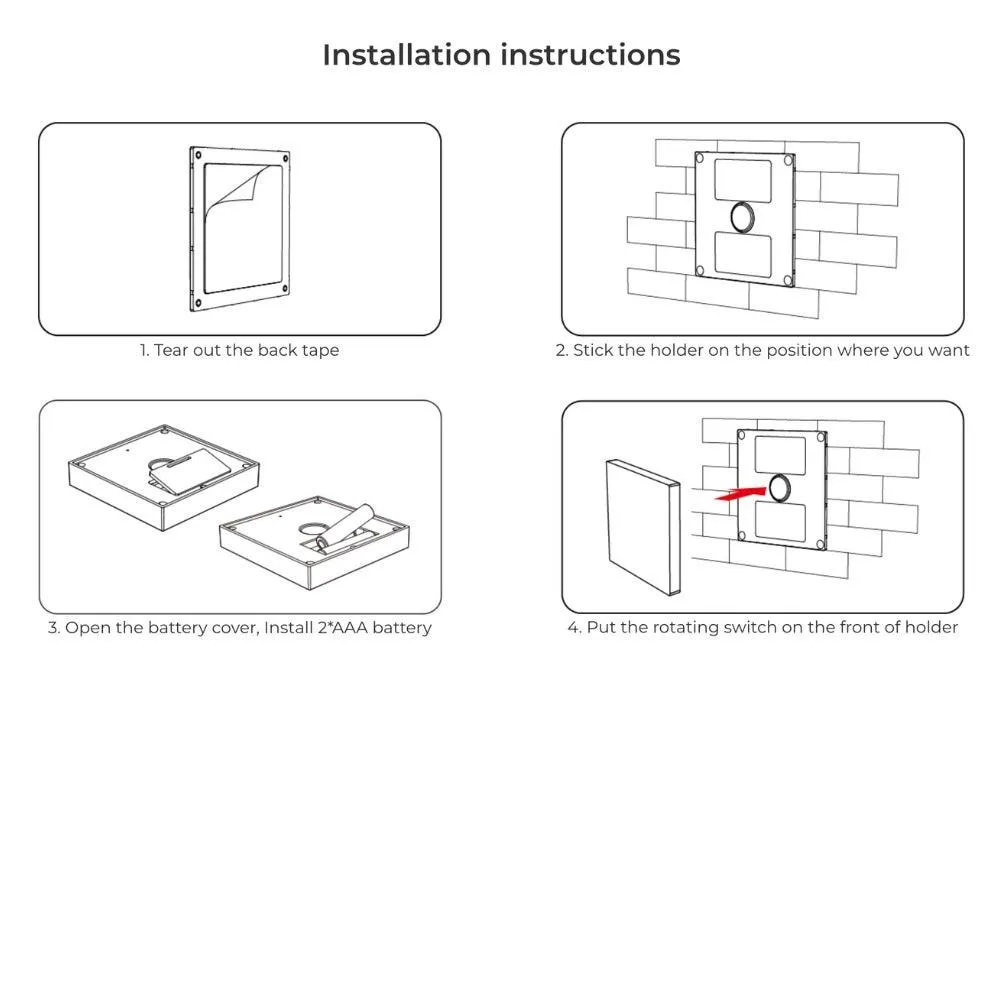

• Magnetic installation
• 2.4G RF wireless transmission technology
• Support MiBoxer/Mi-Light 2.4G series
• Control distance: 30m
• 16 Millions colors
• Brightness, color temperature and Saturation adjustable
Different dynamic mode can be used for various applications
Each zone control countless lamps or controllers
Dim brightness based on your requirements, get luminous lighting feature as you want
Specification:

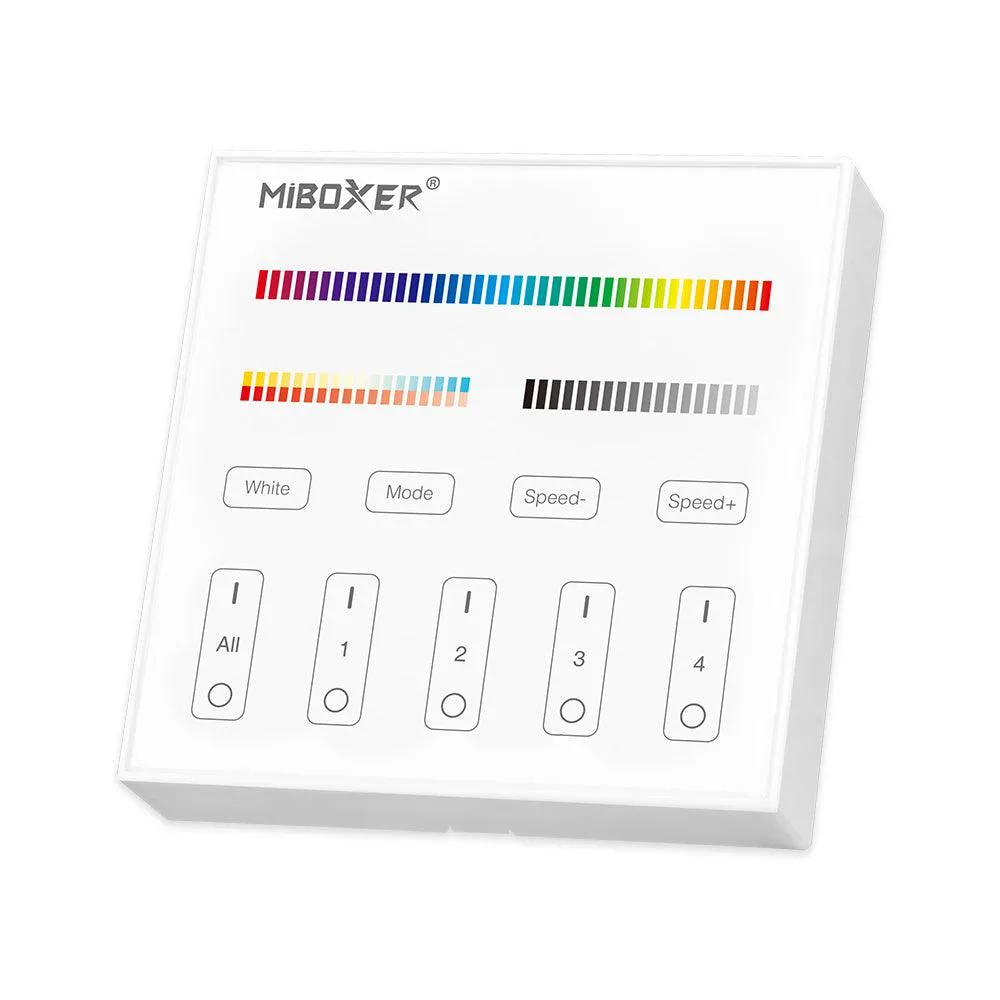

Product - 4-Zone Panel Remote (RGB CCT)
Model - B4 (White)
Working Voltage - 3V (AAA * 2PCS)
Standby Power Consumption - 20μA
Transmitting Power - 6dBm
RF - 2.4GHz
Control Distance - 30m
Transmission Frequency - 2400-2483.5MHz
Modulation Method - GFSK
IP Rating - IP20
Working Temperature - -10~40°C
Size - 86mm x 86mm x 16mm
