Features:

Using mini 0402 LED as light source, and glue on surface to make the lights more evenly and uniform.

Up to 810/840/896 LEDs each meter, only around 3.7-4.5mm distance between same color LEDs.

Double layer FPCB, balancing the voltage dropping, heat dissipation and flexibility.

Compatible with most of the RGB/RGBW controllers in the markets.

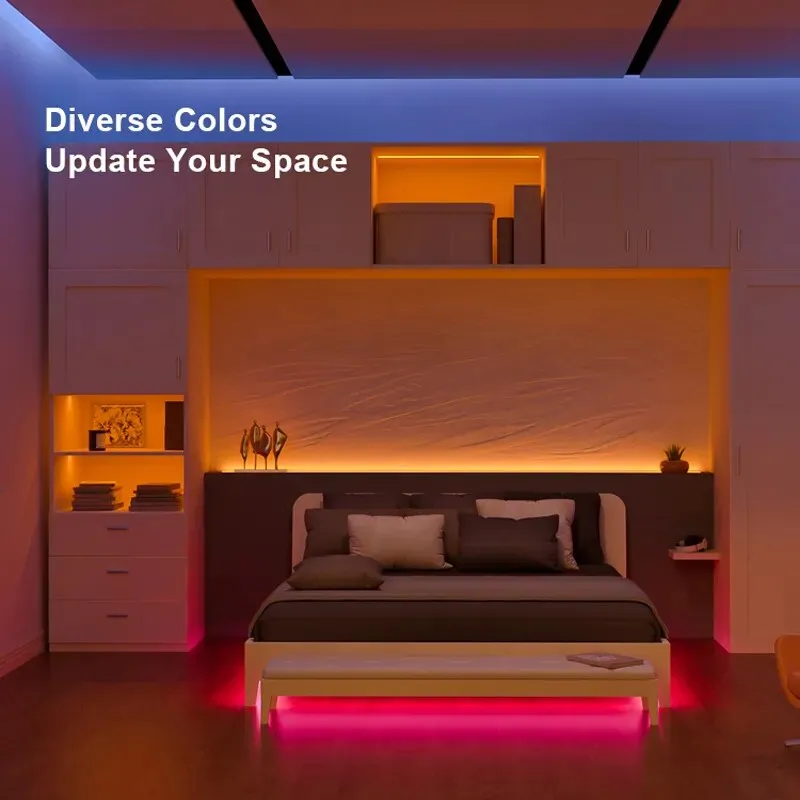

Applications, Residential lighting, decorative lighting.

This LED lights need work with RGB/RGBW controller.

Specification:

Input Voltage: DC12V / DC24V.

Wattage: 810/840-10W/M, 896-16W/M.

FPCB width: 810/840-10mm, 896-12mm.

FPCB height: 1.6mm.

LED quantity: 810LEDs/840LEDs/896LEDs/M.

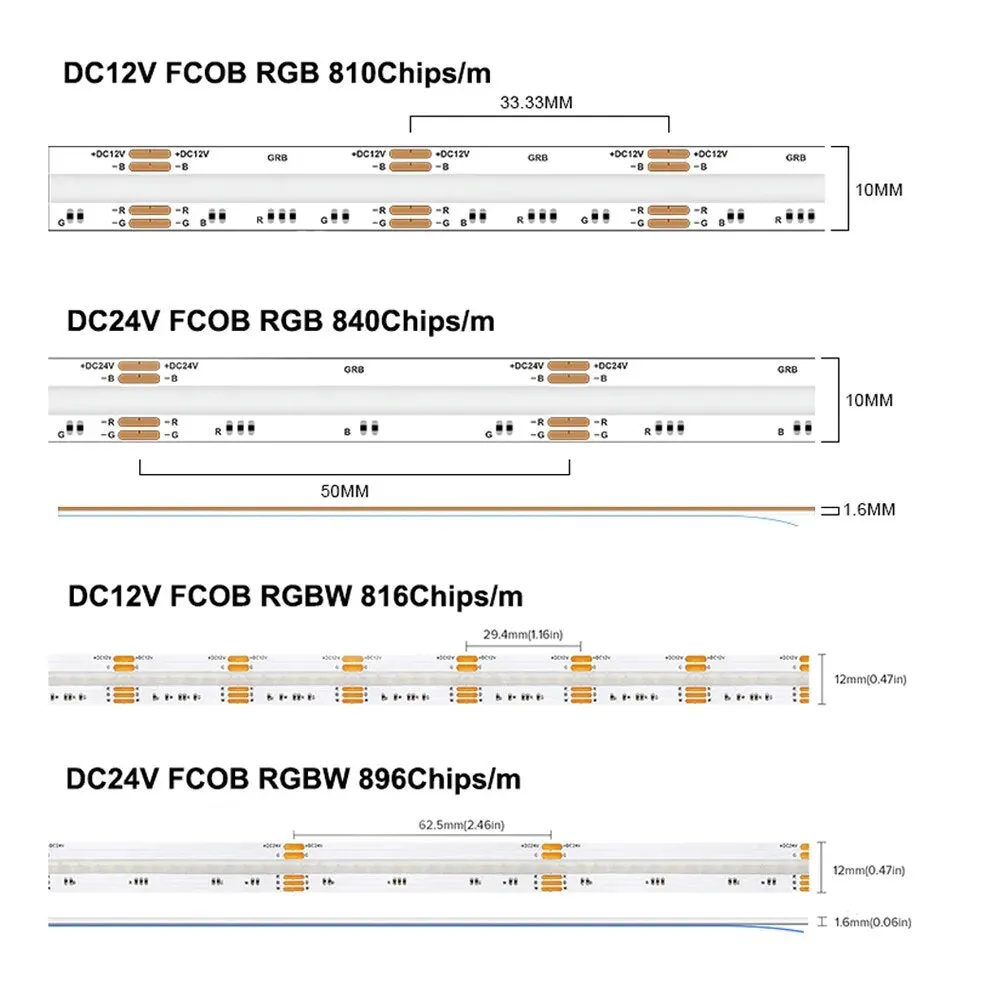

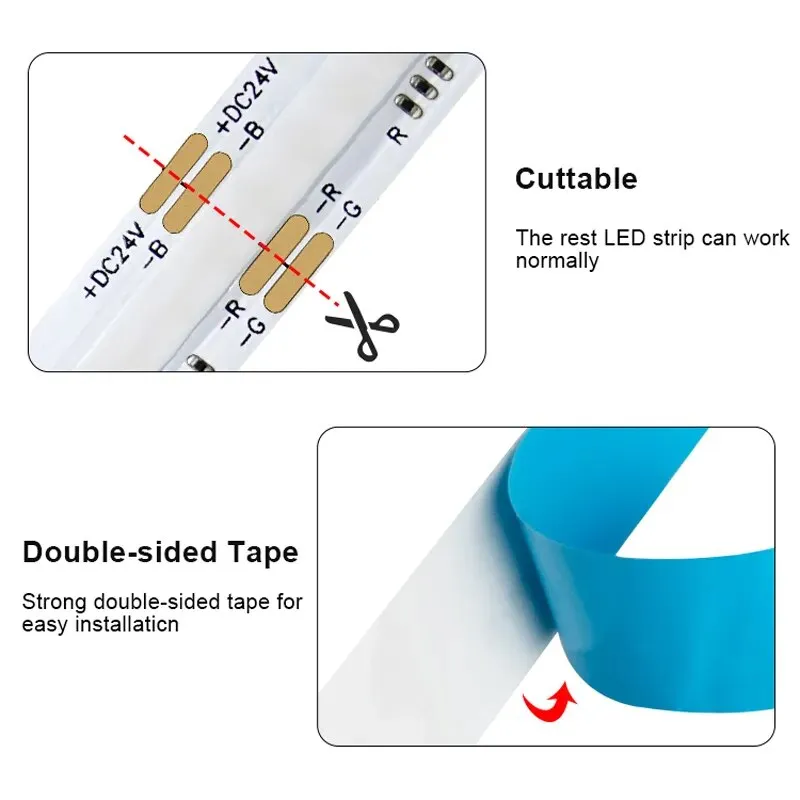

Cutting length: 810leds/m, DC12V- every 33.33mm; 840leds/m, DC24V-every 50mm; DC12V-every 29.4mm; 896leds/m, DC24V-every 62.5mm.

Colors: RGB/RGBW, Any Colors Changeable.

Color Rendering Index: Ra＞90.

Operation temperature: -20℃- 45℃.

Storage temperature: -20℃- 60℃.

View angle: 180°.

Package:

1 * FCOB RGB/RGBW LED strip ( power supply and controller is not included ).

Installation Ways:

1. For powering on one side, the recommend running length is 5 meters, for over 6 meters please connect in parallel.

2. Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.

3. Match the polarities according to the marks in the PCB while connecting.
