| Product Attribute | Attribute Value |
|---|---|
| Approvals | CSA Certified;EN 50178;UL Listed |
| Connection | 0.2-4.0mm2 (solid), 0.2-2.5mm2 (flexible), 22-12 AWG |
| Depth | 2.283" (58mm) |
| Dimensions | 110 x 107.5 x 58 mm |
| For Use With | Modular Controllers ; EASY700 Intelligent Relays ; 800 Intelligent Relays ; MFD Intelligent Relays |
| Input | 12 at 24 Vdc |
| Input Type | Voltage |
| Length | 4.331" (110mm) |
| Mounting Type | Top-hat rail |
| Number of Inputs | 12 Input |
| Number of Outputs | 6 Output |
| Output Type | Relay |
| Primary Type | Expansion |
| Quantity | 1 |
| Series | |
| Special Features | Expansion Module |
| Standards | EN 50178, IEC/EN 60947, UL Listed, CSA Certified, IP20 Rating |
| Supply Voltage | 100 to 240 VAC |
| Type | 18 I/O expansion |
| UPC Code | 4015082321123 |
| Width | 4.232" (107.5mm) |
Overview

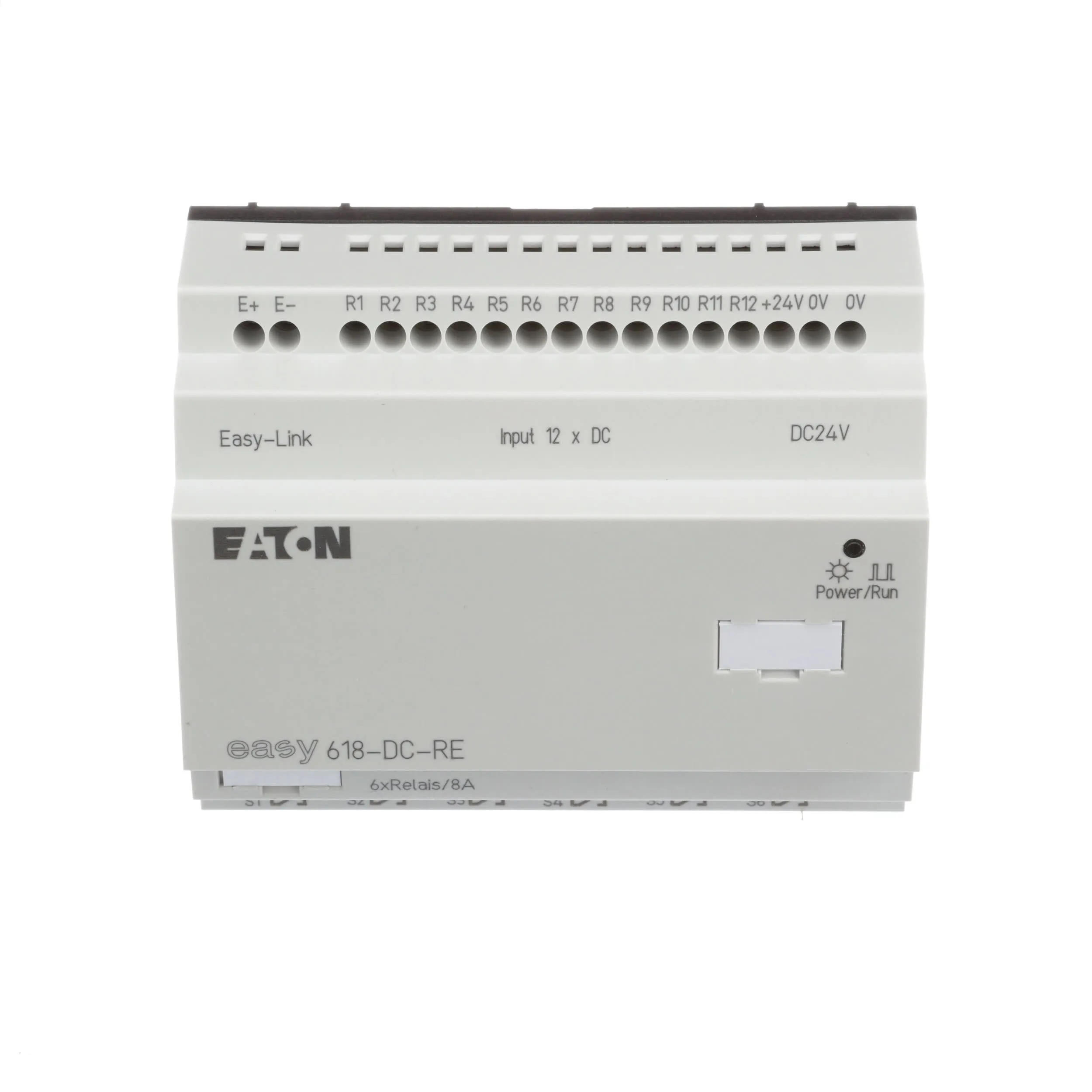

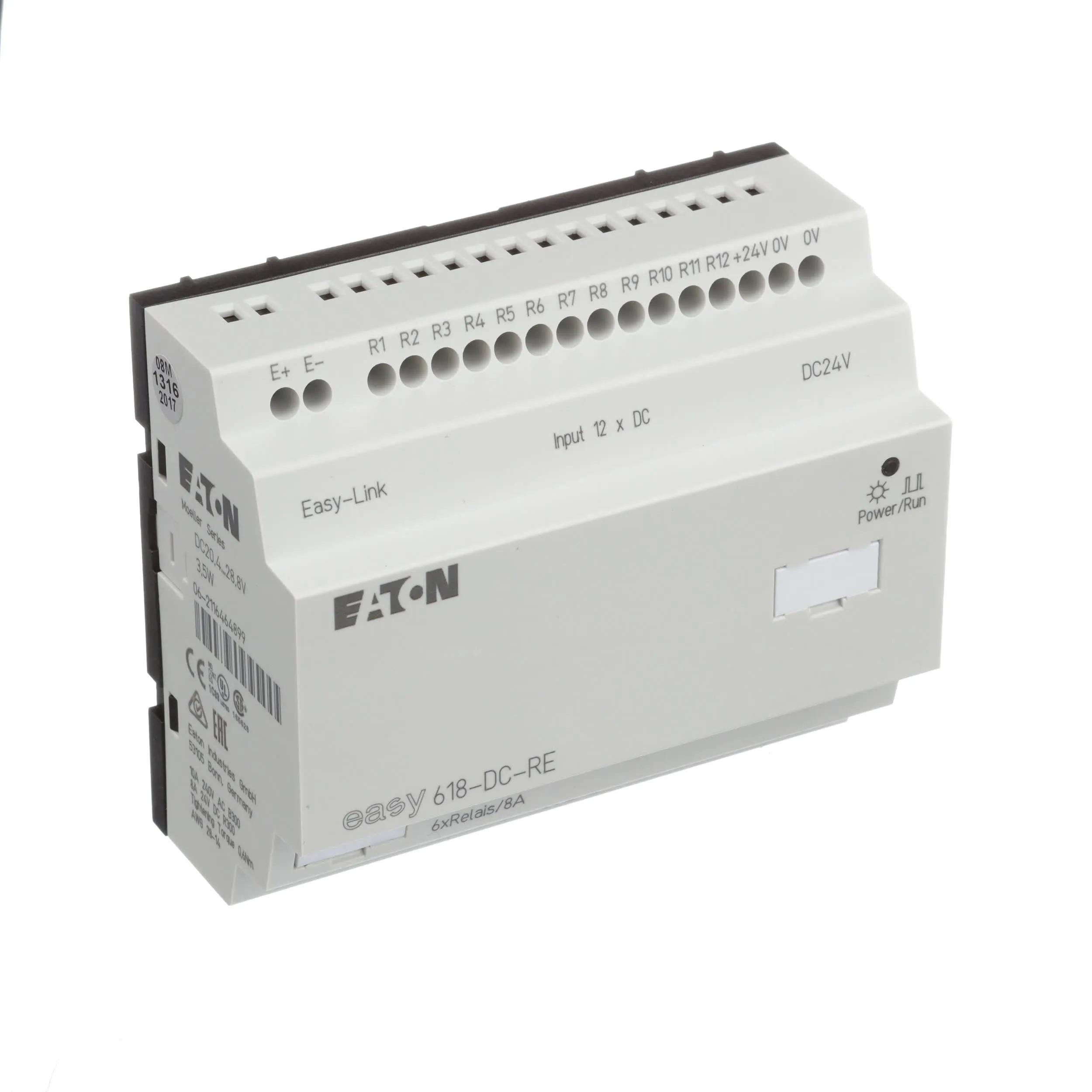

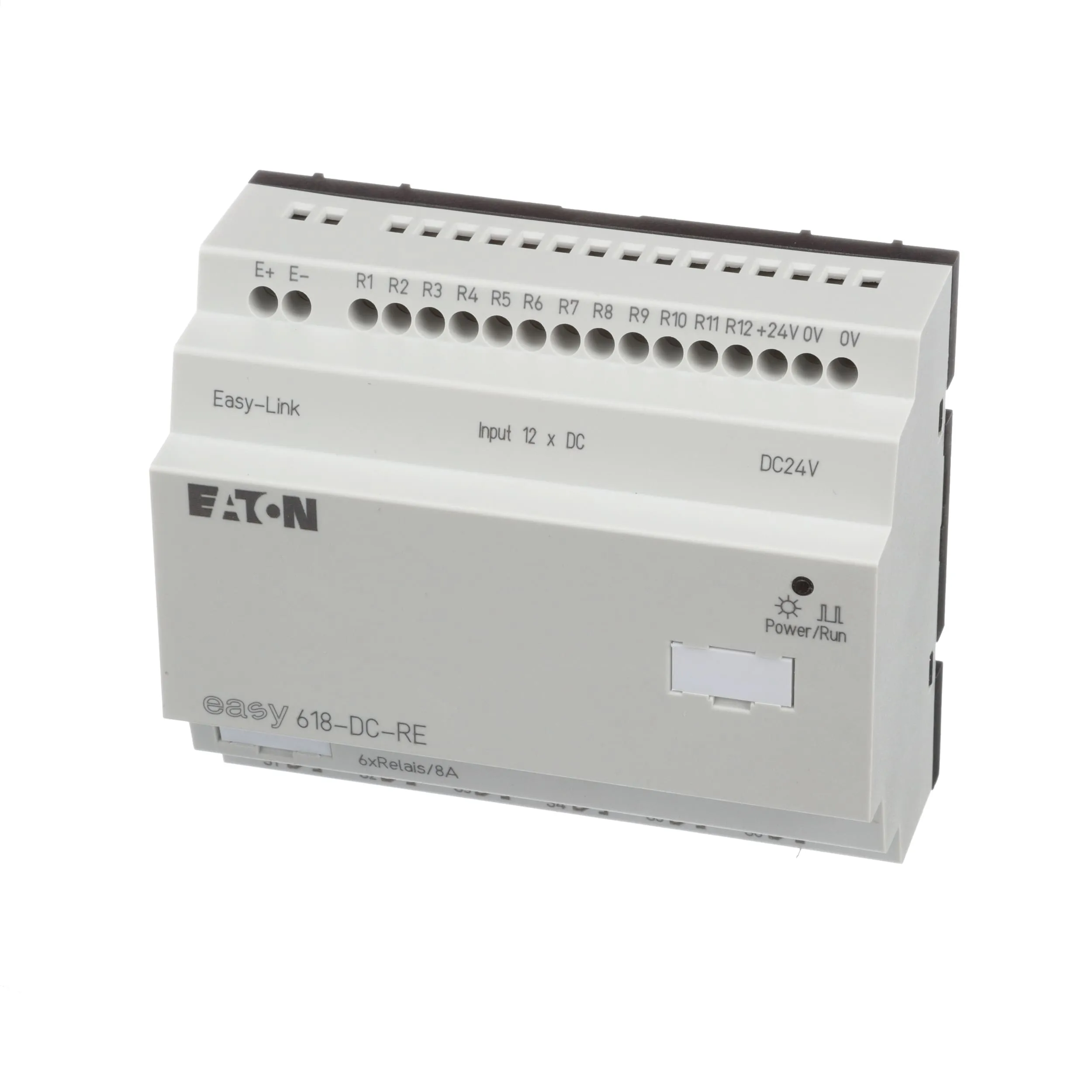

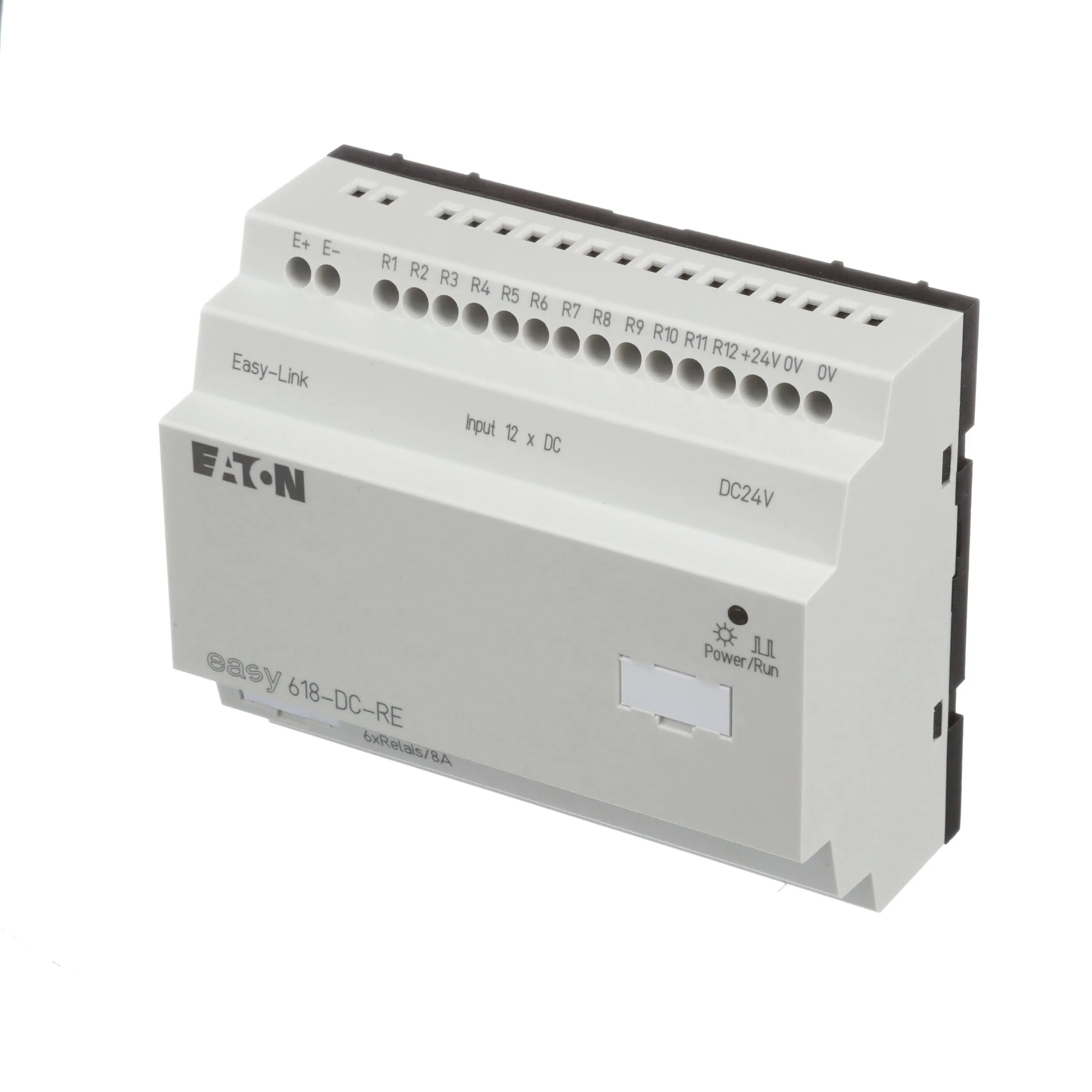

By connecting an EZ618-AC-RE, EZ618-DC-RE or EZ620-DC-TE expansion module, users can create an intelligent relay with 24 inputs and up to 16 outputs. These three expansion modules are simply fitted onto the EZ controller and directly connected using the EZ-LINK interface connector.
