Quick Specs
Tower server | 5U (Rack conversion kit)
Processor | Max: 8 Cores (PP)2x Intel Xeon E5-2600 Processors
Memory | Max: 768GB24 DDR3 RDIMM 1600Mhz
Storage | Max: 48TB8x 3.5” SAS/NL-SAS/SATA (HDD/SSD) 4 PCIe SSD
Boot OptionsIDSDM
Internal USB
S110 (SW RAID)
H310, H710, H710P
External
H810
External (non-RAID)
6Gbps SAS HBA
2 x 1GbE LOM
Remote Management:iDRAC7 Express with Lifecycle Controller
PCIe Slots:7 PCIe slots
Four x16 slots with x16 bandwidth, full-length, full-height
Two x8 slots with x8 bandwidth, full-length, full-height
One x8 slot with x4 bandwidth, full-length, full-height
Up to 4 (single-width or double width)
Ideal for:
- Virtual Desktop Interface (VDI)

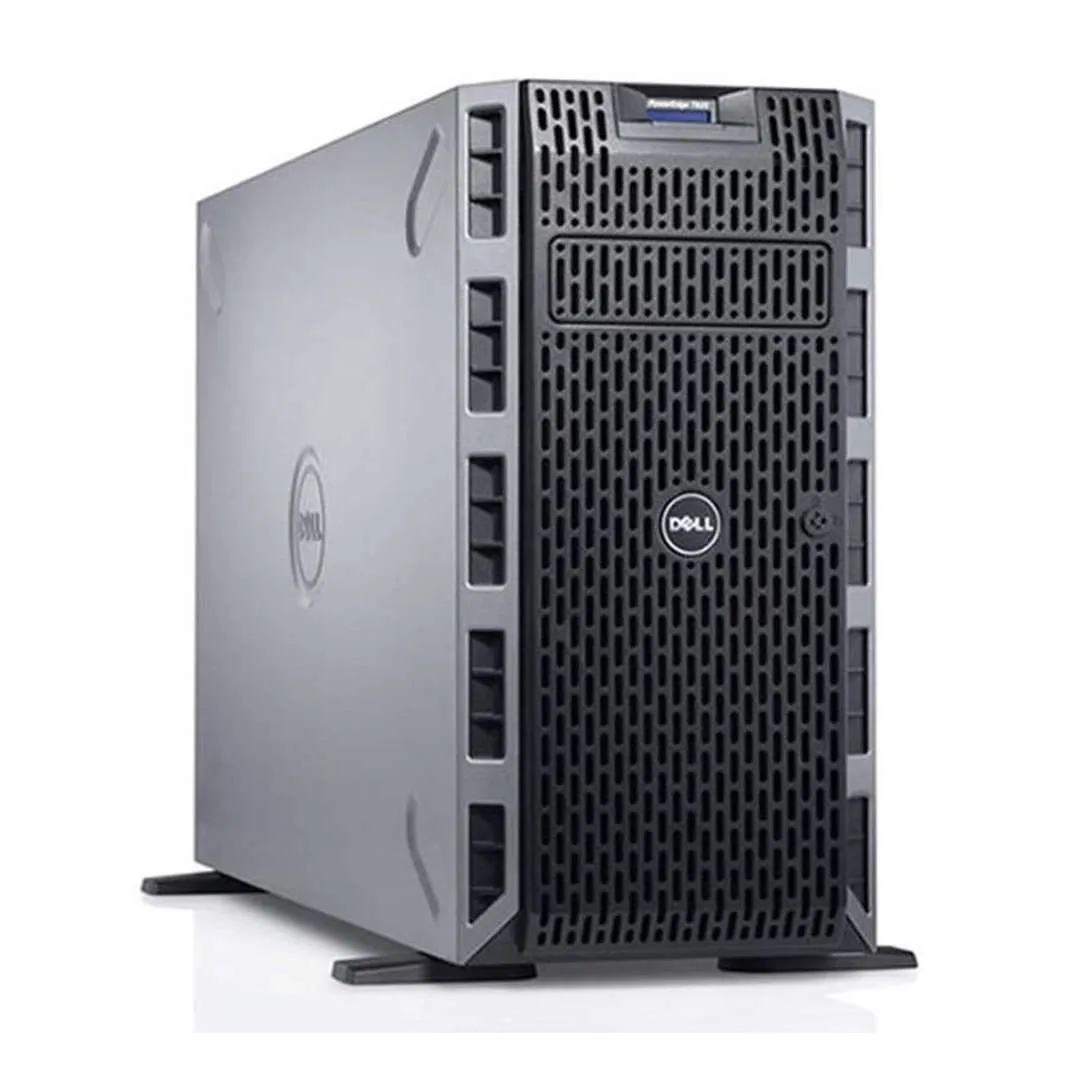

An enterprise-class, 2-socket tower server, the Dell PowerEdge T620 emphasizes high performance and high availability with built-in room for growth.
PowerEdge T620- Up to 24 DIMMs
- PCIe 3.0-enabled expansion slots

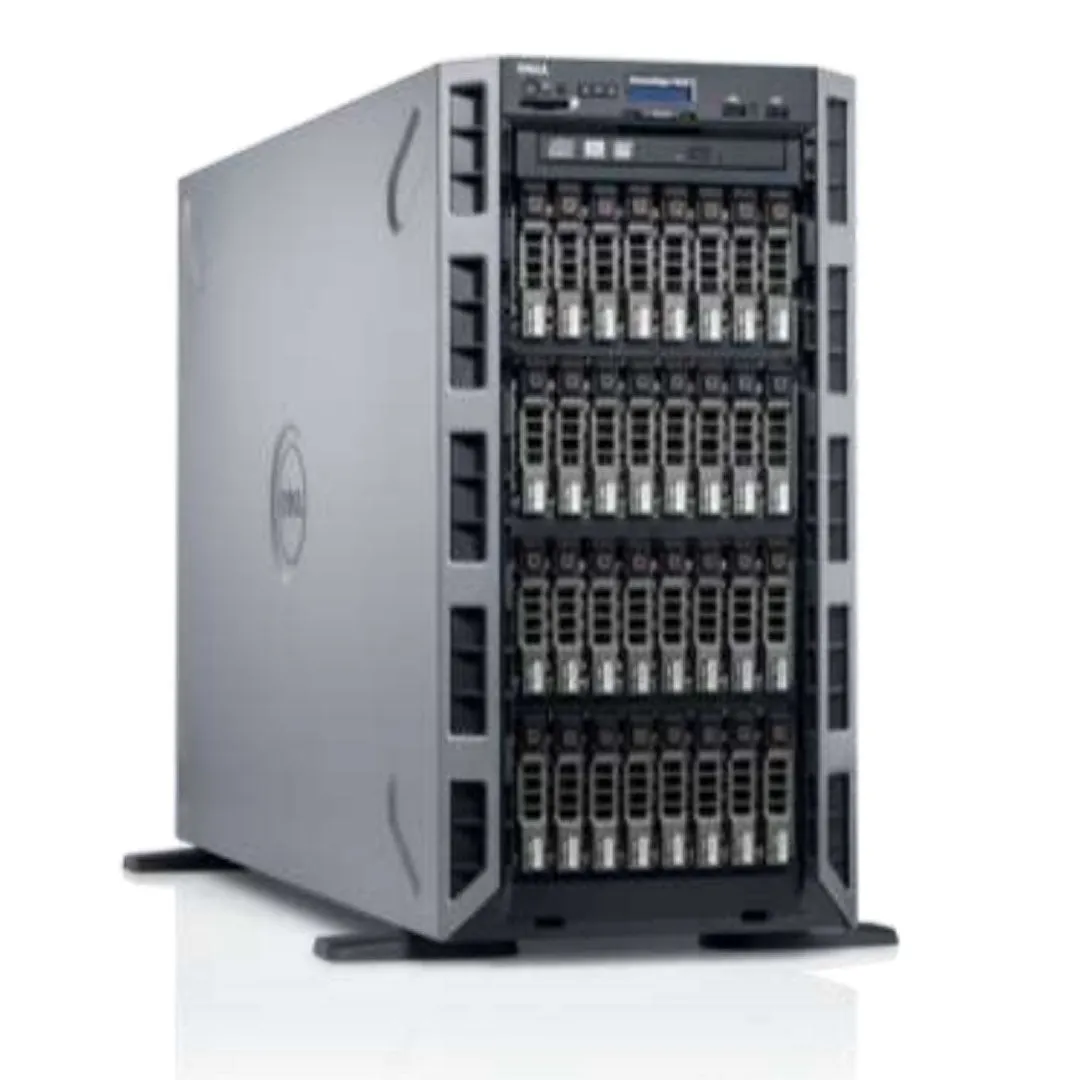

- Up to 32 x 2.5” or 12 x 3.5” hard drives
- Optional hot-plug, front-access PCIe SSDs
- Optional internal GPU accelerators
The Dell PowerEdge T620 is a feature-rich, 2-socket tower server with up to 24 DIMMs, storage capacity of up to 32 drive bays, and Intel Xeon E5-2600 processing power. The T620 shines in its ability to handle demanding virtualization environments with up to 16 processor cores and high memory density. The T620 is an excellent platform for key workloads such as databases, web serving, customer relationship management (CRM), desktop virtualization, medical imaging and security management.
Designed for demanding small and medium business environments
The extensive memory (768GB), large local storage capacity, and I/O flexibility in the PowerEdge T620 make it an attractive platform for server consolidation projects. The T620 features allow you to achieve space savings, utilize your IT administrator’s time more efficiently and minimize potential software licensing fees.
The T620 is a flexible server with excellent energy efficiency and acoustical performance, allowing it to be placed into quiet office settings, like remote branches and open office environments. The T620 can also be rack-mounted for your growing environments.
Businesses and organizations with remote offices need not worry, as the T620 offers consistent worldwide support.
Features that protect data and help keep the server running are essential. The T620 and its large storage capacity offers both software-based RAID and hardware RAID controllers to protect critical business information with several RAID options.
Ideal performance, versatility and scalability
Quickly deploy the computing power you need for demanding consolidation projects or virtualization environments with scalability that meets the demands for small and large businesses.
Performance-packed computing
Dramatically boost application performance with the Intel Xeon processor E5-2600 or E5-2600v2 product family with up to 24 dual in-line memory modules (DIMMs). Supporting up to 12 cores per processor and up to 768GB of system memory, these next-generation processors deliver leadership performance for compute-intensive tasks.
Enhance your workload performance and availability with the balanced, scalable I/O features of the PowerEdge T620 tower server that include integrated PCI Express (PCIe) Gen3-capable expansion slots.
Versatile storage capacity
Tap into the massive storage capacity of the T620 tower server, featuring up to 32 hot-swap drive bays with a number of flexible hard disk drive (HDD) options and PCI Express flash drives that can increase IOPS performance.
Uncompromising productivity

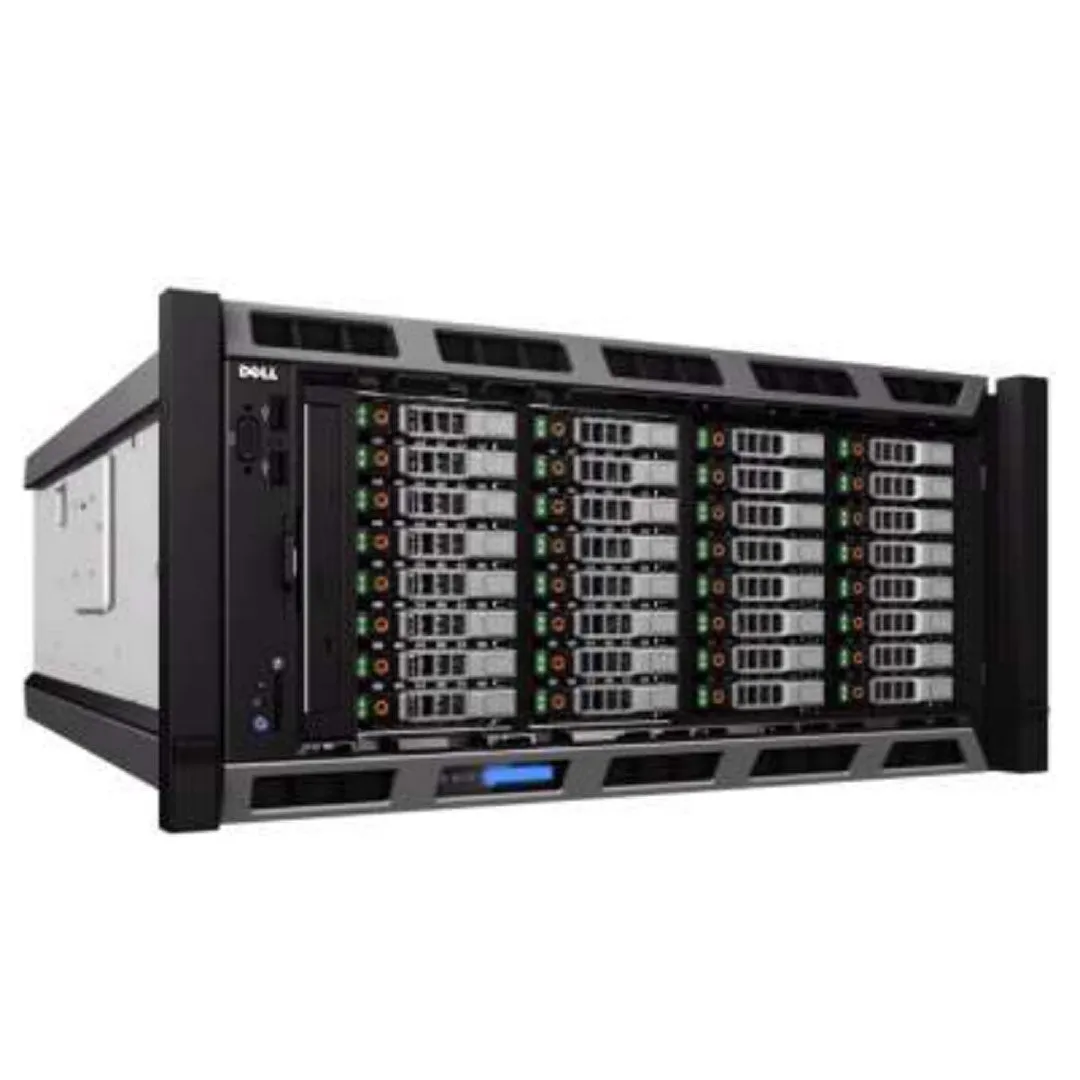

Balance high performance and efficient management with the T620. Ideal as a tower server for office environments, it can also be rack-mounted for growing data centers.
Experience easy lifecycle manageability with intelligent hardware-driven systems administration, extensive power management and other innovative management tools.
Enhanced operational efficiency
Maintain high-level data center productivity, security and maintenance with next-generation reliability, availability and serviceability (RAS) features within the T620 infrastructure.
Flexible deployment
Keep your T620 tower servers working for you as your company grows and work environments change.
