Please Pay Attention:
1. The Price is Only LED Strip, Not Included Power Supply and Pixels Controller.
2. SPI FCOB RGB Must Use DC12V/24V Power Supply and Pixels Controller to Control.
3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.

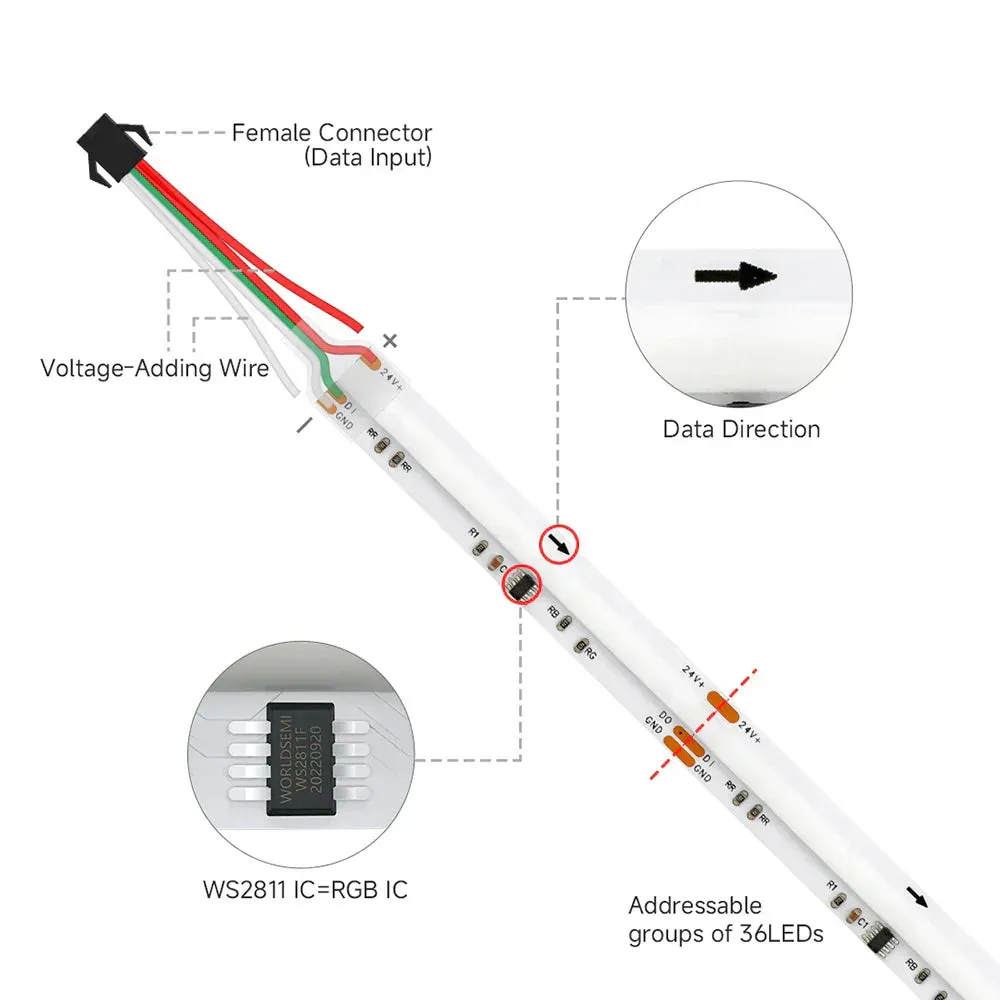

4. SPI FCOB RGB LED Strip Can Be Cut at Each Shear Point To Create Custom Lengths, Do Not Bend LED Strip Sharply.
5. The 3 Pin SM Connectors of LED Strip Included: Red: VCC, White: GND, Green: DATA.
6. The LED Strip Has Adhesive Tape On The Back of PCB. Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.
7. Longer LED Strip Runs, Please Add More Power to 2 Pin Power Wire of Both Ends To Reduce Voltage Drop.
8. This light strip is not compatible with WLED / ESP32 controllers, please buy another controller from our store!
How to Choose LED Power Supply and Pixels Controller?
First, Calculated The Whole LED Strip Lights Watts. 12V-8W/m, 24V-16W/m, If You Buy 5m 24V LED Strip, So 16W*5=80W.
Then, Choose the Right LED Power Supply. If you choose the LED Strip is Work with DC24V Power, So 80W / 24V=3.33A ( At Least 4A or more ).
Finally, Choose the Right Pixels Controller You Like. SPI FCOB RGB LED Strip is Controlled By Single Data Line Pixels Controller. So you could choose them from our store, we have Bluetooth APP SP630E, Wifi APP SP530E, and Computer controller etc. ( If you can't recognize them, you could feel free to contact us, we will glad to help you ).
Specification:
Input Voltage: DC12V, DC24V.
IC Type: FCOB RGB WS2811 IC.
Wattage: 12V-8W/m, 24V-16W/m.

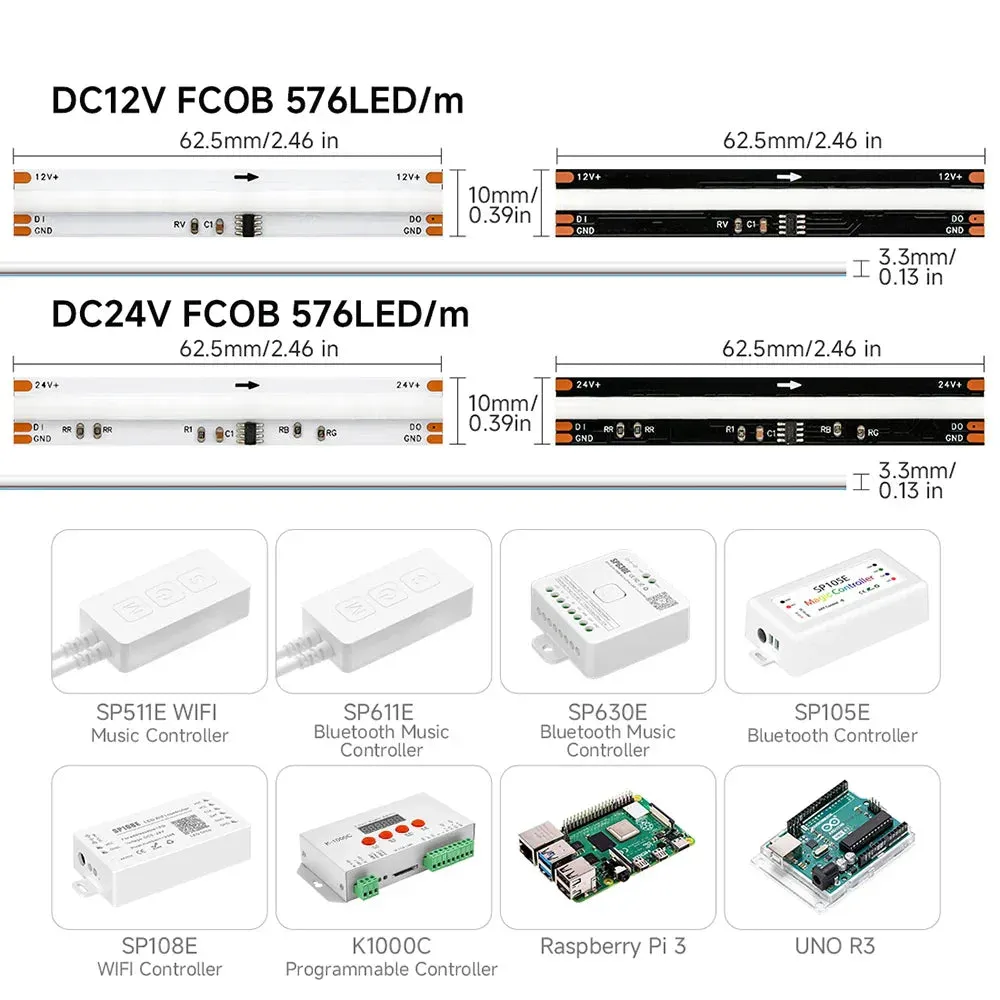

FPCB Width: 10mm.
LED Quantity: 576LEDs/M.
Cutting Length: 62.5mm.
Addressable: 62.5mm can be unique controlled.
Color Rendering Index: Ra＞90.
Operation Temperature: -20℃- 45℃.
Package:
1 * FCOB 576 RGB IC LED Strip (power supply and controller is not included).

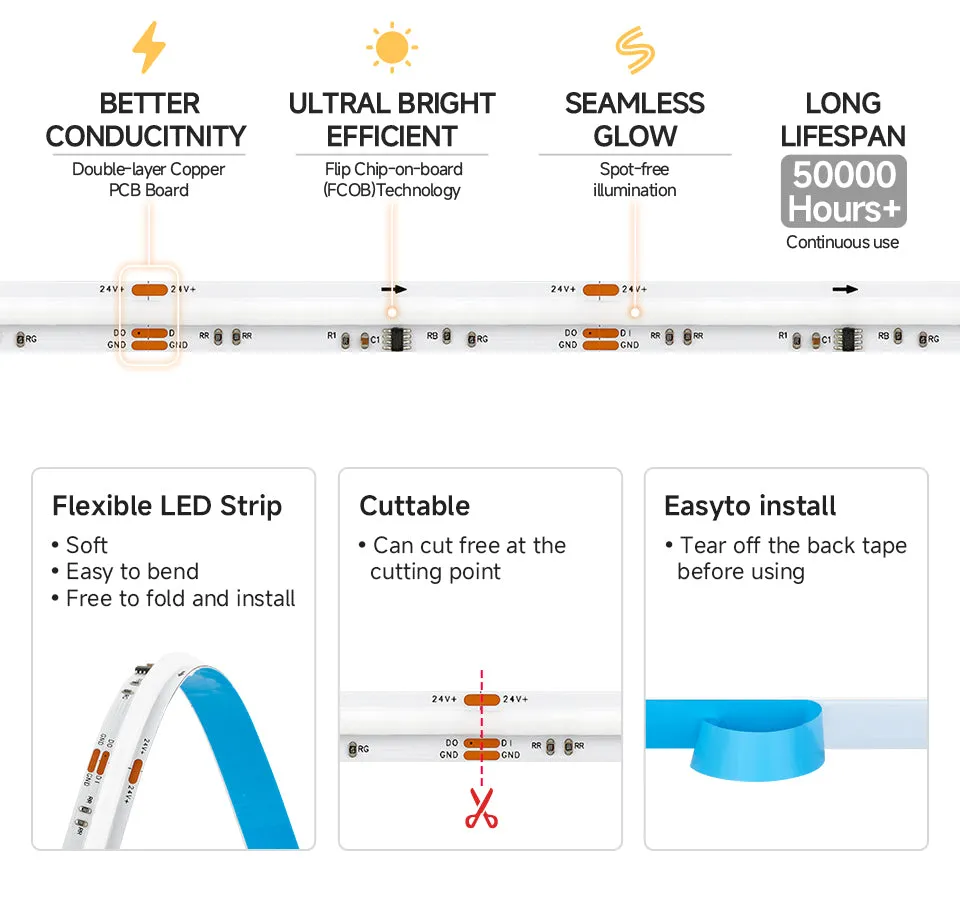

Advantages:

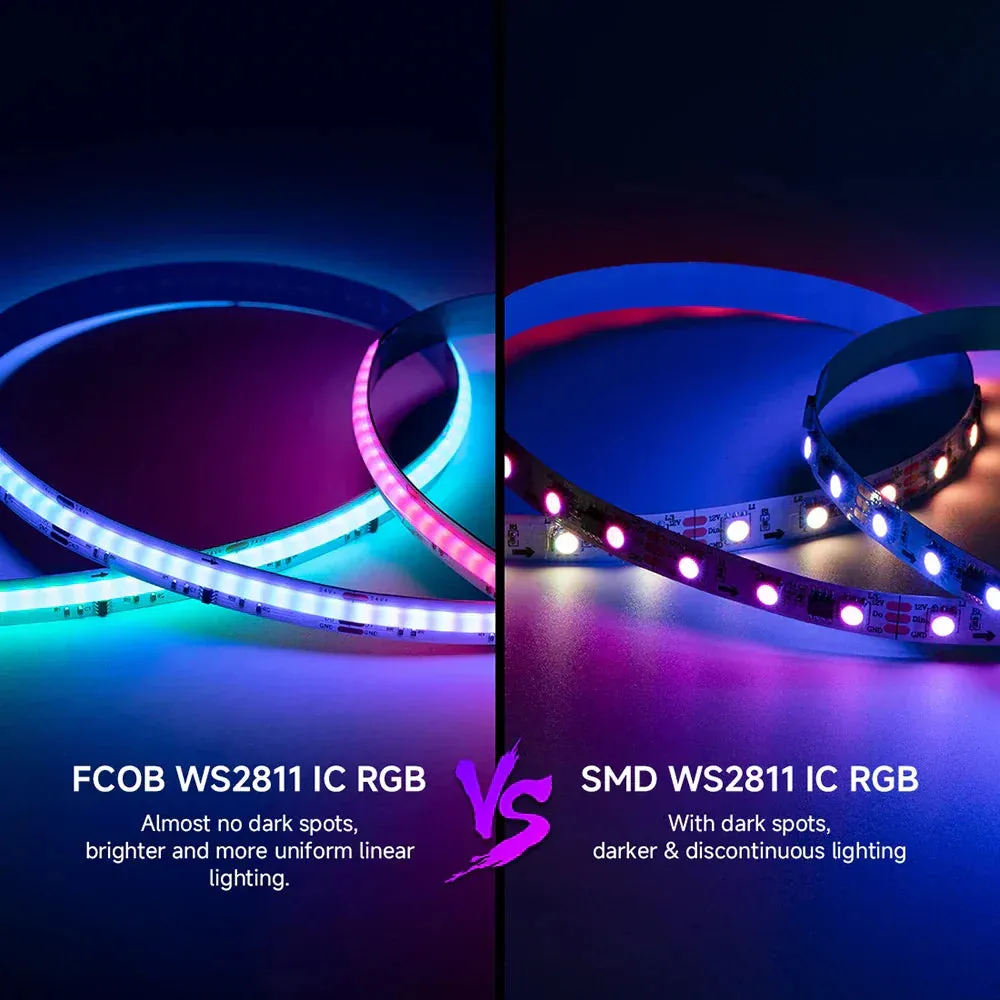

1. Chips are arranged in a linear way, integrated package, with uniform light color and no light spot;
2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;
3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;
4. DC12V 24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;
5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and firm and durable for pasting;
6. LED light source, energy-saving and environmental protection, in line with national environmental standards.
