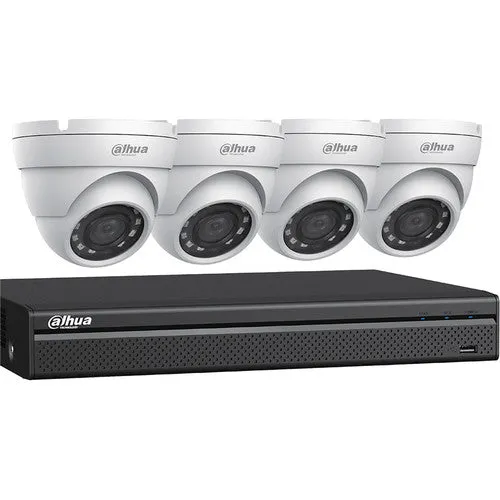

Monitor your home or business with the Pentabrid 4-Channel 8MP HD-CVI DVR with 2TB HDD and 4 5MP Outdoor Night Vision Turret Cameras from Dahua Technology. This DVR kit enables you to record from up to four analog cameras. It supports HD-CVI, HD-TVI, AHD, and CVBS signals. Additionally, it can record video from IP cameras at up to 8MP per channel. It comes preinstalled with a 2TB HDD. Storage is expandable to 10TB.
The included turret cameras transmit 2592 x 1944 resolution video at 20 fps. They are each equipped with a 2.8mm fixed lens that delivers a 103° horizontal field of view. The cameras have a built-in heater and are IP67 rated for outdoor use.
DVR Features
- Embedded processor and Linux OS
- Plug-and-play operation
- Smart H.265 , H.265, Smart H.264 , and H.264 video compressions
- Configurable recording options and schedules that save HDD space and active monitoring time
- Auto-detect camera inputs
- Up to 8MP camera recording per IP channel
- 24 Mb/s maximum incoming bandwidth
- HDMI and VGA video outputs
- Two-way audio supported
- Two USB 2.0 ports
- 100M RJ45 port
- RS-485 port for PTZ control
- ONVIF 16.12 compliant
- Compatible with iOS and Android
Camera Features
- Simultaneously transmits video, audio, and data over a single coax cable
- Plug-and-play operation
- Built-in heater
- Compatible with Dahua HCVRs/DVRs
- Video transmission distance up to 3937'
- IR cut filter for day and night functionality
- Auto and manual IR on/off control
- 35.43" close focus distance
- Camera pivots from 0 to 360° horizontally and from 0 to 90° vertically
- 0 to 360° rotation
- >65 dB S/N ratio
- Backlight compensation, highlight compensation, and digital wide dynamic range
- Automatic gain control
- 2D-DNR
- Auto and manual white balance
- Multi-language OSD menu
Intelligent Analytics (IVS)
- Tripwire
- Intrusion
- Abandoned/missing object
- Facial detection
- Tripwire and Intrusion available on two channels
- Abandoned/missing object available on channel 1 and 2
- Facial detection available on one channel
DORI Distance
- Detect (8 ppf): 207'
- Observe (19 ppf): 82'
- Recognize (38 ppf): 43'
- Identify (76 ppf): 20'
