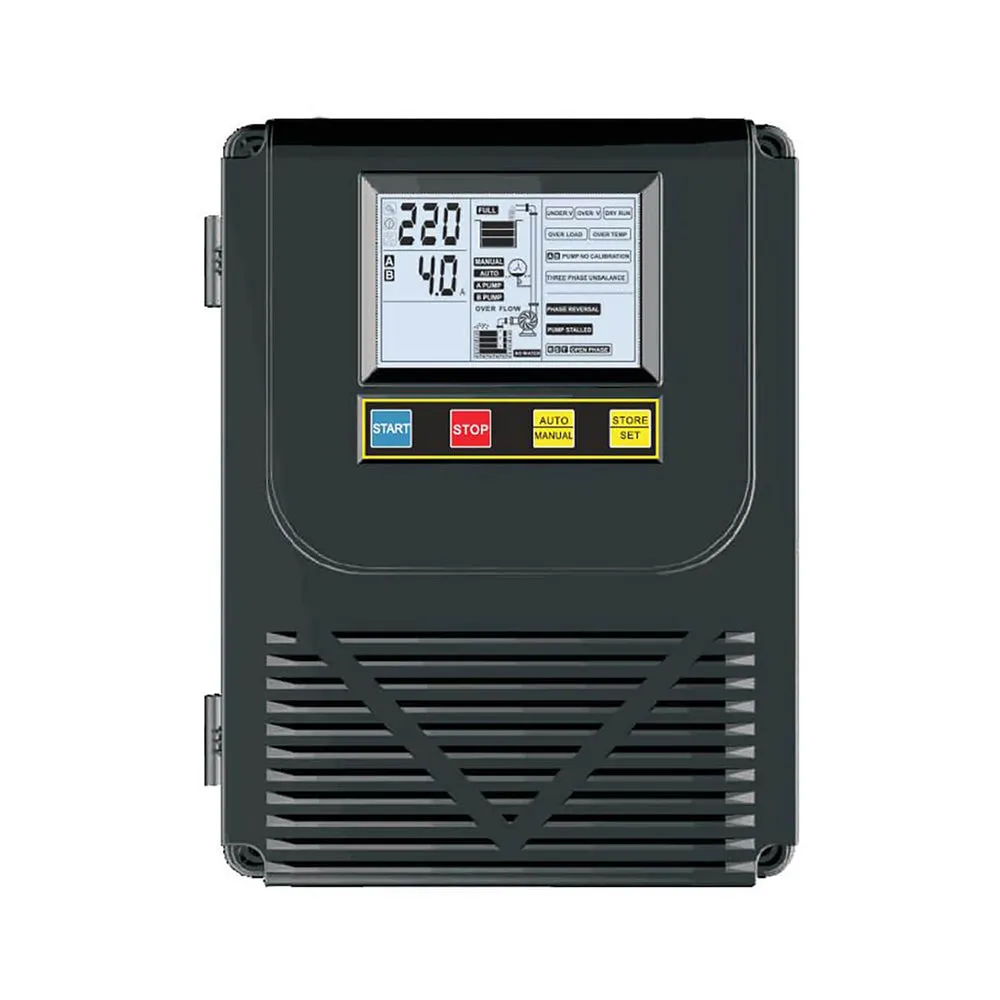

Bianco I-Protect Single Phase Pump Controller up to 2.2kW
The Bianco iPROTECT provides significant protection for direct start (DOL), single phase pumps from 0.37kW – 2.2kW with PSC MOTORS (Permanent-Split Capacitor) with start and run windings).
It also offers a number of control and operation modes to suit a variety of applications. The controller is easy to set up with a push button calibration for over and under-load. The iPROTECT also allows for dry-run protection without float switches or probes.
The LCD screen displays the pump running state and provides the user a wealth of useful information. The iPROTECT is particularly useful where there is the need to control and protect single pump installations managing the automatic operation by a variety of switching methods.

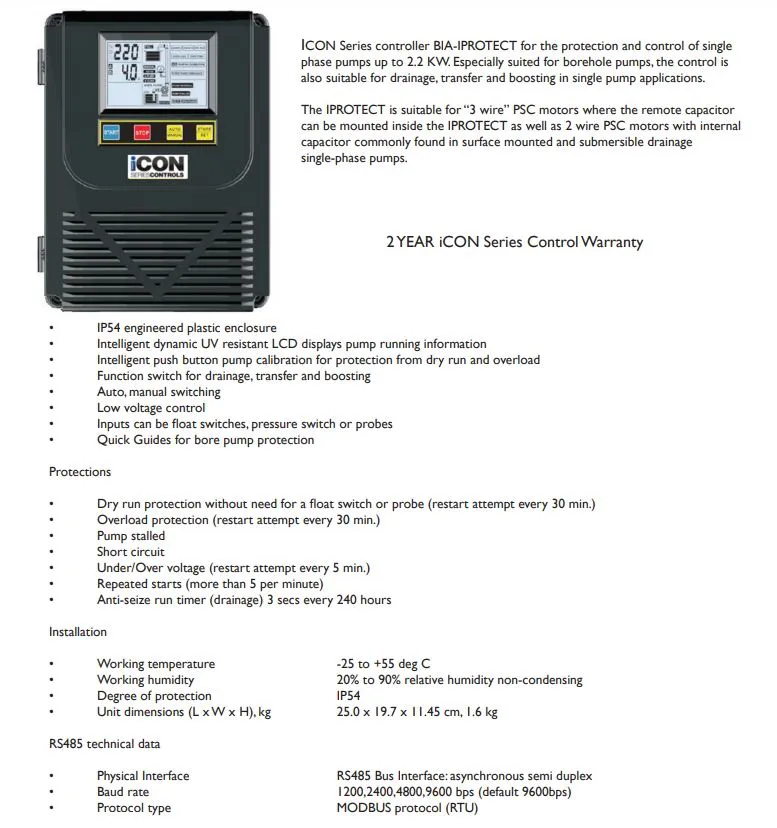

ICON Series controller BIA-IPROTECT for the protection and control of single phase pumps up to 2.2 KW. Especially suited for borehole pumps, the control is also suitable for drainage, transfer and boosting in single pump applications. The IPROTECT is suitable for “3 wire” PSC motors where the remote capacitor can be mounted inside the IPROTECT as well as 2 wire PSC motors with internal capacitor commonly found in surface mounted and submersible drainage single-phase pumps.
- IP54 engineered plastic enclosure
- Intelligent dynamic UV resistant LCD displays pump running information
- Intelligent push button pump calibration for protection from dry run and overload
- Function switch for drainage, transfer and boosting
- Auto, manual switching
- Low voltage control
- Inputs can be float switches, pressure switch or probes
- Quick Guides for bore pump protection
PROTECTIONS AGAINST
- Dry run protection without need for a float switch or probe (restart attempt every 30 min.)
- Overload protection (restart attempt every 30 min.)
- Pump stalled
- Short circuit • Under/Over voltage (restart attempt every 5 min.)
- Repeated starts (more than 5 per minute)
- Anti-seize run timer (drainage) 3 secs every 240 hours
SPECIFICATIONS
- Working temperature: -25 to 55 degrees C
- Working humidity: 20% to 90% humidity non-condensing
- Degree of protection: IP54
- Unit of protection: 25cm x 19.7cm x 11.45cm 1.6kg
